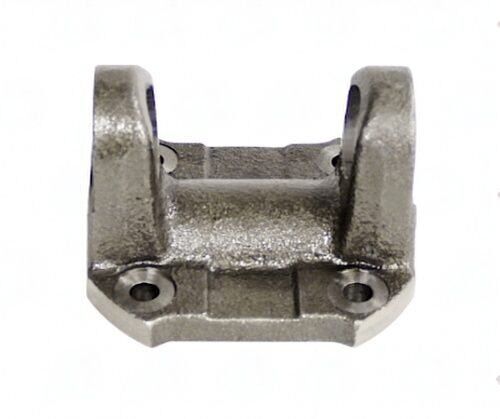

3102-173 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.400″ – Pilot Dia 1.772, M

The 3102-173 Flange Yoke is a crucial component for Mitsubishi driveline systems, specifically designed to meet the demands of 1310 Series applications. This yoke connects the driveshaft to the transmission or differential, ensuring a robust and reliable interface. With a bolt circle diameter of 3.400 inches and a pilot diameter of 1.772 inches, it provides a precise fit that is essential for optimal performance.

One of the standout features of the 3102-173 is its thoughtful engineering, which includes a bolt hole diameter of 0.337 inches and a distance from the face to the centerline of 1.685 inches. These dimensions are critical for proper alignment and installation, which can significantly affect the driveline’s efficiency and longevity.

When installing the 3102-173, keep the following in mind:

• Ensure proper spline engagement depth for a secure fit.
• Verify phasing with the opposite yoke to prevent vibrations.
• Do not force spline entry; it should slide in smoothly.
• Double-check bolt hole alignment before tightening.

This yoke is built to handle the rigors of everyday driving, making it an ideal choice for both fleet applications and performance builds. Trust the 3102-173 Flange Yoke to deliver the reliability and performance you need in your Mitsubishi drivetrain.
