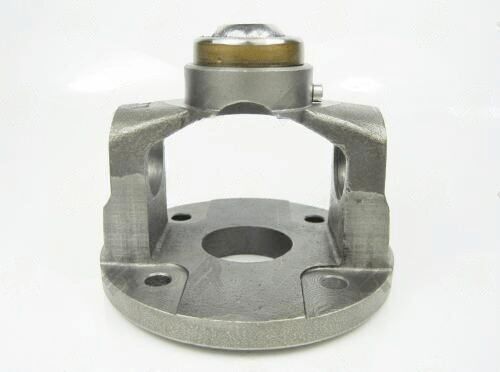

3102-172CV – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.12

The 3102-172CV Cv Flange Yoke plays a crucial role in Suzuki vehicles, particularly for those undergoing a 1310CV conversion. This yoke connects the driveshaft to the transmission, ensuring smooth power transfer and reliable performance. With a 1.772″ pilot diameter and a bolt circle diameter of 3.12″, this yoke is engineered to fit perfectly with your driveline setup.

When working on Suzuki applications, it’s essential to consider the specific dimensions and compatibility of the yoke. The 3102-172CV features a 0.5″ ball stud diameter, which is critical for ensuring proper alignment and function within the driveline. The C L to face measurement of 1.625″ provides the necessary clearance for optimal operation.

• Verify spline engagement depth for a secure fit.
• Ensure proper phasing with the opposite yoke to avoid vibrations.
• Check bolt hole diameter of 0.325″ for compatibility with your mounting hardware.
• Inspect the mating components for wear or damage before installation.

Using the 3102-172CV Cv Flange Yoke in your Suzuki setup not only enhances performance but also contributes to the longevity of your driveline system. This part is a reliable choice for any technician or builder looking to maintain or upgrade their vehicle’s driveline.
