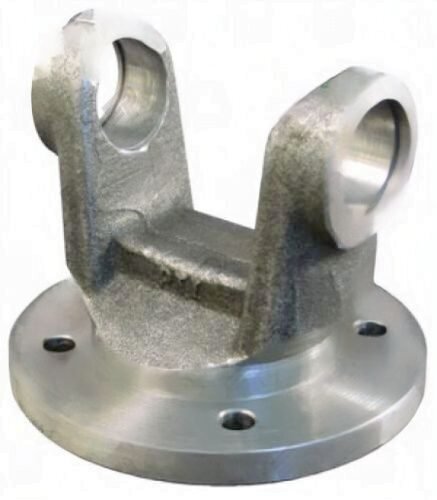

3102-172 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.120″ – Pilot Dia 1.772, M

The 3102-172 Flange Yoke is a critical component for any driveline setup requiring a 1310 Series connection. With a bolt circle diameter of 3.120 inches, this yoke ensures a secure fit to the companion flange, providing stability and strength during operation. The male pilot diameter of 1.772 inches is designed to align perfectly with the mating components, which is essential for maintaining proper phasing and reducing vibration.

This yoke features four bolt holes with a diameter of 0.325 inches, allowing for easy installation and secure fastening. The distance from the center of the bolt holes to the flat surface measures 2.671 inches, which is crucial for ensuring that the yoke sits correctly against the mounting surface. This precise geometry helps to avoid misalignment issues that can lead to premature wear or failure.

• Series: 1310
• Bolt Circle Diameter: 3.120 inches
• Pilot Diameter: 1.772 inches
• Bolt Hole Diameter: 0.325 inches
• Number of Bolt Holes: 4

When installing the 3102-172, always check the spline engagement depth and ensure proper alignment with the opposite yoke. This attention to detail will help maintain the longevity of your driveline components. The 3102-172 is particularly suited for applications in Suzuki and Geo vehicles, making it a versatile choice for both performance builders and fleet technicians.
