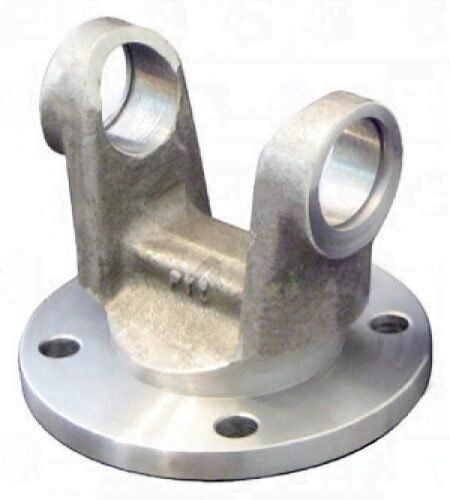

3102-170 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.346″ – Pilot Dia 1.772-M

SKU: 3102-170

$32.97

10 in stock

17 People watching this product now!

Description

The 3102-170 Flange Yoke is a 1310 series component designed for Suzuki and Geo applications. It features a male pilot diameter of 1.772 inches and a bolt circle diameter of 3.346 inches. The yoke includes tapped holes with a diameter of 0.41 inches and has a universal joint retaining width of 3.469 inches. The universal joint bearing diameter is 1.062 inches, and the distance from the centerline of the joint to the flange face is 2.671 inches. This yoke ensures a reliable and precise fit for Suzuki and Geo driveshafts.

Additional information

Bolt circle dia	3.346
Bolt hole dia	0.410
Cj to flat	2.671
Partn number	3102-170
Pilot dia	1.772-M
Series	1310
Bolt Holes	4
