Sale!

3102-17 Flange Yoke Toyota 1310 series Flange 60 X 68 - Rec Bolt Pattern / Land Cruiser - Image 1

Click to enlarge

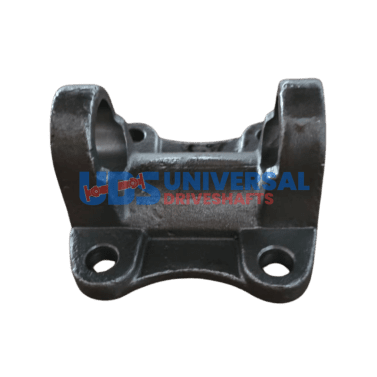

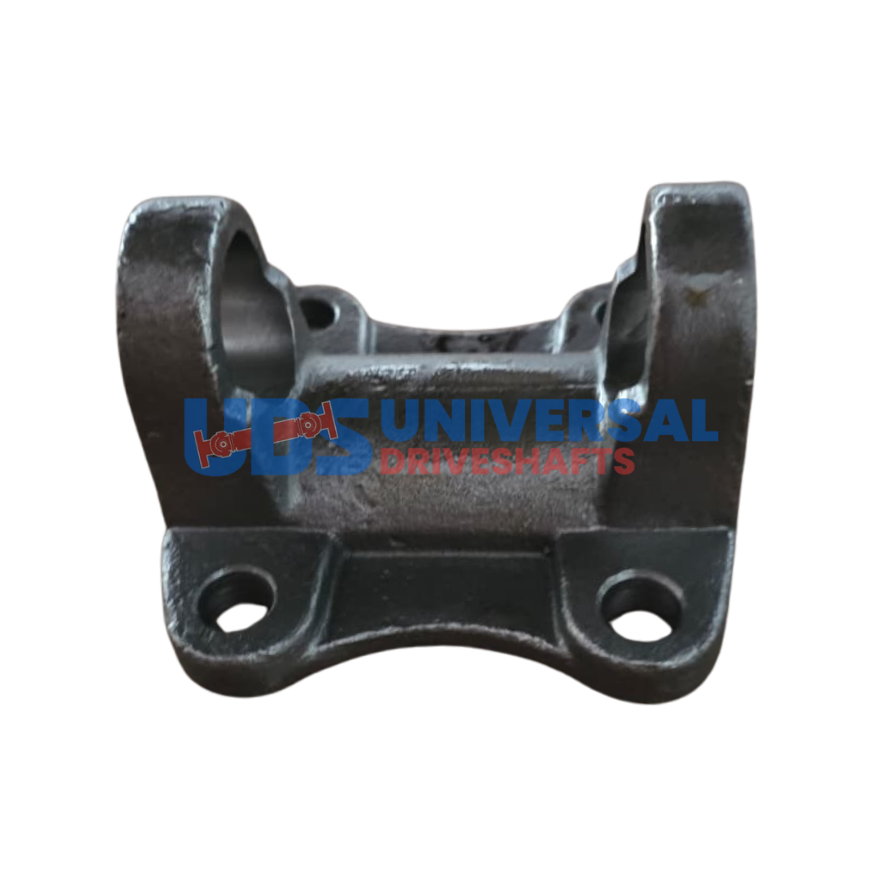

3102-17 Flange Yoke Toyota 1310 series Flange 60 X 68 – Rec Bolt Pattern / Land Cruiser

SKU: 3102-17

$23.90

+50 in stock

11 People watching this product now!

Description

The 3102-17 Flange Yoke is a 1310 series Toyota Land Cruiser conversion flange designed for aftermarket applications. It features a male pilot diameter of 1.808 inches and a bolt hole diameter of 0.450 inches. The rectangular bolt hole pattern measures 3.575 inches, and the overall length is 2.718 inches. This yoke is ideal for converting Toyota Land Cruiser driveshafts for custom setups.

Additional information

Bolt circle dia	3.575
Bolt hole dia	0.450
Cj to flat	2.718
Partn number	3102-17
Pilot dia	1.811-M
Series	1310
Bolt Holes	4

More from the same Category

3102-220X – Flange Yokes – 1310 Series – Bolt Circle Dia 3.150″ – Pilot Dia 2.204, M

$91.77

Bolt circle dia	3.150
Bolt hole dia	0.331
Cj to flat	2.671
Partn number	3102-220X
Pilot dia	2.204 , M
Series	1310
Bolt Holes	6

3102-185 Flange Yoke 1310 , Toyota with Bolt Circle Diameter: 3.661, Pilot: 1.811 Square Pattern

$37.92

Bolt circle dia	3.661
Bolt hole dia	0.445
Cj to flat	1.634
Partn number	3102-185
Pilot dia	1.811 , M
Series	1310
Bolt Holes	4

3102-221X – Flange Yokes – 1310 Series – Bolt Circle Dia 3.150″ – Pilot Dia 2.204, M

$91.77

Bolt circle dia	3.150
Bolt hole dia	0.405
Cj to flat	2.671
Partn number	3102-221X
Pilot dia	2.204 , M
Series	1310
Bolt Holes	6

3102-216 – Flange Yokes – 1310 Series – Bolt Circle Dia 4.520″ – Pilot Dia 2.162, F

$69.49

Bolt circle dia	4.520
Bolt hole dia	0.489
Cj to flat	2.000
Partn number	3102-216
Pilot dia	2.162 , F
Series	1310
Bolt Holes	4

3102-33 Flange Yoke 1310 Series 2-2-1519 Fits: Honda Passport 1994-2002 Isuzu Rodeo 1995-2004 Isuzu Amigo 1998-2000 Flange OE Refs: 8-97020-281-1

$37.53

Bolt circle dia	3.346
Bolt hole dia	0.406
Cj to flat	1.766
Partn number	3102-33
Pilot dia	2.559 , M
Series	1310
Bolt Holes	4

3102-188 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.078″ – Pilot Dia 1.811, M

$65.51

Bolt circle dia	3.078
Bolt hole dia	0.402
Cj to flat	1.687
Partn number	3102-188
Pilot dia	1.811 , M
Series	1310
Bolt Holes	4

6fd1 2 2 899 1 DSP 0 1 228x228 1

3102-39 | 2-2-899-1 , 1310 Series Nissan / Subaru Pilot: 57mm male , 2.250 Inch

$22.14

Bolt circle dia	2.750
Bolt hole dia	0.315
Cj to flat	1.625
Partn number	3102-39
Pilot dia	2.245 , M
Series	1310
Bolt Holes	4
Brand	UDS
Notes	Mostly used on Nissan

3102-35 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.285″ – Pilot Dia 1.700, M

$54.51

Bolt circle dia	3.285
Bolt hole dia	0.465
Cj to flat	1.500
Partn number	3102-35
Pilot dia	1.700 , M
Series	1310
Bolt Holes	4

3102-271 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.307″ – Pilot Dia 1.850, M

$57.39

Bolt circle dia	3.307
Bolt hole dia	0.412
Cj to flat	1.750
Partn number	3102-271
Pilot dia	1.850 , M
Series	1310
Bolt Holes	4

3102-253 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.118″ – Pilot Dia 2.250, M

$46.62

Bolt circle dia	3.118
Bolt hole dia	0.338
Cj to flat	1.712
Partn number	3102-253
Pilot dia	2.250 , M
Series	1310
Bolt Holes	4

3102-217 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.937″ – Pilot Dia 2.162, F

$25.60

Bolt circle dia	3.937
Bolt hole dia	0.489
Cj to flat	2.082
Partn number	3102-217
Pilot dia	2.162 , F
Series	1310
Bolt Holes	4

3102-252 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.925″ – Pilot Dia 2.250, M

$46.62

Bolt circle dia	3.925
Bolt hole dia	0.405
Cj to flat	1.712
Partn number	3102-252
Pilot dia	2.250 , M
Series	1310
Bolt Holes	4

3102-361 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.543″ – Pilot Dia 2.362, M

$52.97

Bolt circle dia	3.543
Bolt hole dia	0.410
Cj to flat	1.685
Partn number	3102-361
Pilot dia	2.362 , M
Series	1310
Bolt Holes	4

3102-21 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.200″ – Bolt Hole Dia 0.395

$43.87

Bolt circle dia	3.200
Bolt hole dia	0.395
Cj to flat	1.781
Partn number	3102-21
Pilot dia	1.968 , M
Series	1310
Bolt Holes	4
