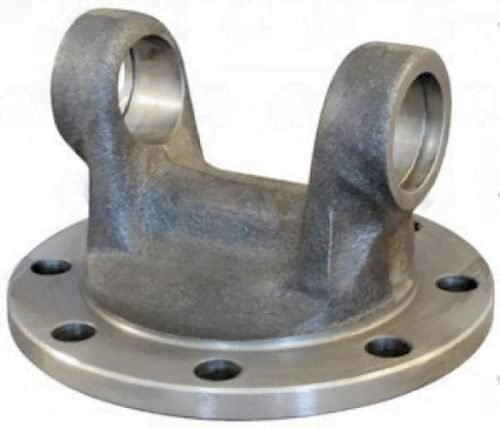

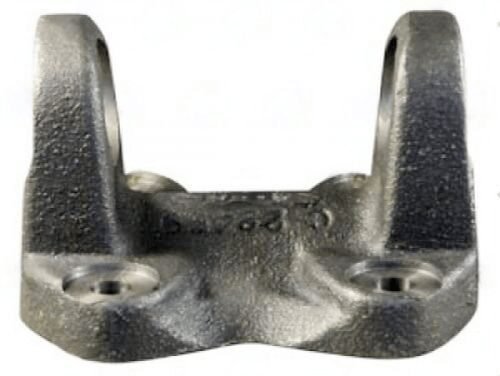

3102-16 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.340″ – Pilot Dia 1.811-M

When you’re dealing with driveline issues, the 3102-16 Flange Yoke is a key component to consider. This yoke, designed for 1310 Series applications, features a 1.811-inch male pilot diameter and a bolt circle diameter of 3.340 inches. If you notice vibrations or misalignment during operation, it could be due to a worn or damaged yoke. Symptoms like clunking noises during acceleration or deceleration often point to a failure in the yoke or U-joint connection.

The 3102-16 yoke includes four bolt holes with a diameter of 0.323 inches, ensuring a secure attachment to the companion flange. It also has a Cj to flat measurement of 1.713 inches, which is critical for maintaining proper alignment and phasing with the opposite yoke. If the yoke is not properly aligned, it can lead to premature wear on the U-joint and other driveline components.

• Check spline engagement depth before installation.
• Verify phasing with the opposite yoke to avoid vibration issues.
• Inspect bolt hole sizes and ensure they match your application.
• Monitor for signs of wear or damage during routine maintenance.

Using the 3102-16 Flange Yoke restores the integrity of your driveline system, ensuring smooth operation and longevity. Always remember that proper installation and alignment are key to preventing future issues.
