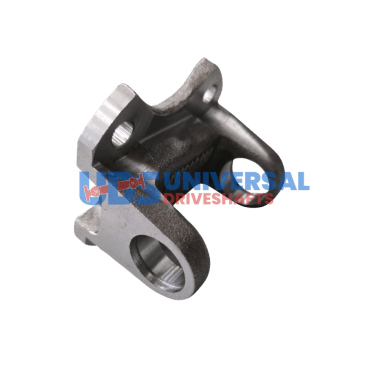

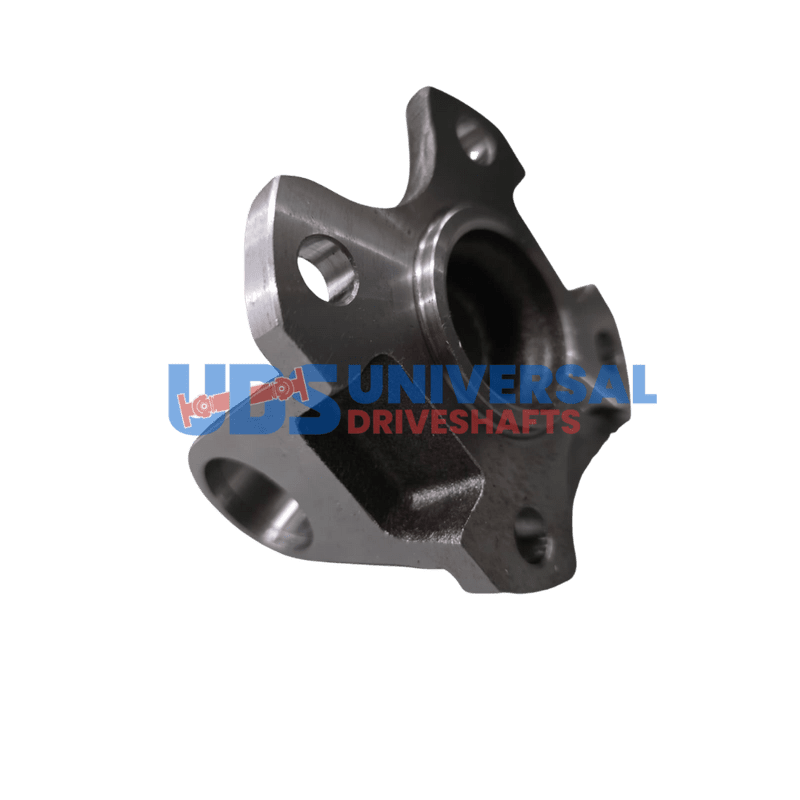

3102-15 Toyota Flange Yoke 1310 series Square 60 x 60 | 2-2-1679 | 2-2-799-1

When working with the 3102-15 Flange Yoke, it’s crucial to ensure proper fitment and alignment for optimal performance. This yoke is designed for 1310 Series applications, featuring a 1.811-inch male pilot diameter, which is essential for a snug fit in the mating component. Before installation, double-check the spline engagement depth to avoid any misalignment issues that could lead to premature wear or failure.

Key specifications include a bolt circle diameter of 3.340 inches and four bolt holes with a diameter of 0.410 inches. The flange face to centerline measurement is 1.750 inches, which is critical for maintaining the correct positioning within the driveline. The swing diameter measures 4.130 inches, accommodating necessary movement during operation.

• Verify pilot diameter matches the mating component to ensure proper fit.
• Check bolt circle diameter and hole alignment before securing.
• Ensure the yoke is phased correctly with the opposite yoke to prevent vibrations.
• Use the appropriate torque specifications for the bolt holes to avoid loosening.

Common mistakes include forcing the spline onto the shaft, which can damage both the yoke and the driveshaft. Always align the components carefully and avoid using excessive force. With the right attention to detail, the 3102-15 Flange Yoke will provide a reliable connection in your driveline setup.
