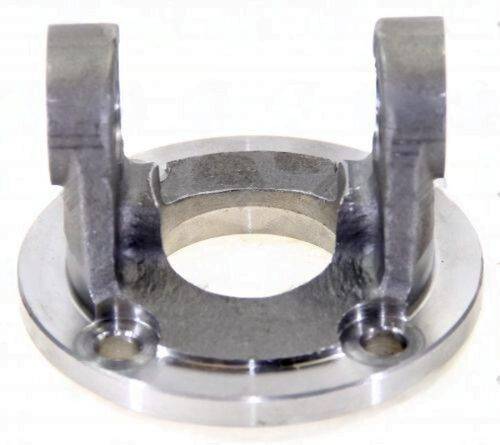

3102-1409 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.540″ – Pilot Dia 2.203-M

The 3102-1409 Flange Yoke is a robust 1310 Series component designed for reliable connections in various driveshaft applications. With a bolt circle diameter of 3.540 inches and a pilot diameter of 2.203 inches, this yoke ensures a precise fit to maintain optimal driveline performance. The four bolt holes, each measuring 0.410 inches in diameter, provide secure attachment points, making installation straightforward and dependable.

What sets the 3102-1409 apart from other yokes is its specific dimensions and series compatibility. The 1310 Series yoke is distinct in its geometry, which directly affects the U-joint it accommodates. For instance, using a yoke from a different series, such as 1350, could lead to improper fitment and potential driveline failure. This yoke’s design allows for proper alignment and phasing with mating components, ensuring smooth operation.

• Series: 1310
• Bolt Circle Diameter: 3.540 inches
• Pilot Diameter: 2.203 inches
• Bolt Hole Diameter: 0.410 inches
• Bolt Holes: 4

When installing the 3102-1409, always check the spline engagement depth and verify phasing with the opposite yoke. This attention to detail will help prevent premature wear and ensure the longevity of your driveline components. The 3102-1409 is your go-to choice for maintaining the integrity of your vehicle’s power transfer system.
