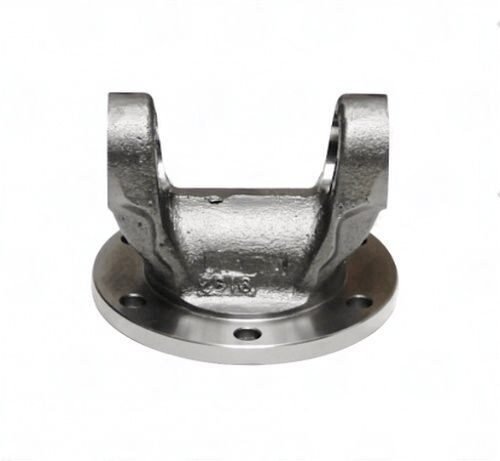

3102-1068 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.317″ – Bolt Hole Dia 0.315
$77.17
2 in stock
Description
The 3102-1068 Flange Yoke is a robust component in the 1310 Series, specifically designed to connect the driveshaft to the transmission or differential. This yoke features a bolt circle diameter of 3.317 inches and a bolt hole diameter of 0.315 inches, ensuring a secure fitment for various applications. The pilot diameter measures 3.937 inches, which aligns perfectly with standard companion flanges, allowing for a seamless integration into your driveline setup.
Engineers designed the 3102-1068 to handle the torque loads typical of 1310 Series applications while maintaining a manageable weight. The six bolt holes provide ample fastening points, ensuring stability and strength during operation. This yoke also has a Cj to flat measurement of 2.125 inches, which is critical for maintaining proper alignment and phasing with the opposing yoke.
When installing the 3102-1068, ensure that you check the spline engagement depth and verify the phasing with the opposite yoke to prevent any driveline vibrations. This yoke is compatible with U-joint kits SPI-5-153X, SPI-5-1310X, and SPI-5-1310-1X, making it a versatile choice for fleet techs and performance builders alike.
- Series: 1310
- Bolt Circle Diameter: 3.317 inches
- Bolt Hole Diameter: 0.315 inches
- Pilot Diameter: 3.937 inches
- Number of Bolt Holes: 6
In summary, the 3102-1068 Flange Yoke is engineered for reliability and performance in demanding driveline applications, making it an essential component for any fabrication shop or fleet technician.
| Bolt circle dia | 3.317 |
|---|---|
| Bolt hole dia | 0.315 |
| Cj to flat | 2.125 |
| Partn number | 3102-1068 |
| Pilot dia | 3.937-OD/F |
| Series | 1310 |
| Bolt Holes | 6 |
