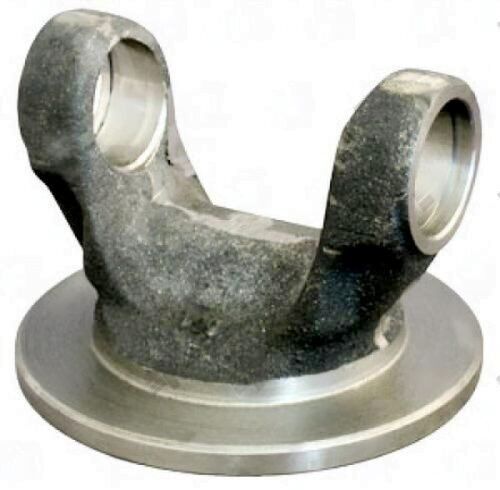

3102-1000 – Flange Yoke 1310 Series , Blank Style , Female Pilot 2.244 , Modification Flange Yoke

SKU: 3102-1000

$29.73

10 in stock

20 People watching this product now!

Description

The 3102-1000 Flange Yoke is a 1310 series blank driveshaft companion flange yoke designed for the 100mm DIN series. It has an outside swing diameter of approximately 3.937 inches and a female pilot diameter of 2.245 inches. The length from the flat of the flange to the center of the universal joint cap is about 2.125 inches. This “blank” yoke allows for custom drilling and tapping of various bolt patterns as needed. It requires a 1310 series universal joint with a 1.062-inch cap and a 3.24-inch span.

This is blank round flange with 1310 ears. It is a flange that customers can machine a custom pilot and bolt circle in. Female pilot measures 2.244″ or 57mm

Additional information

Bolt circle dia	0
Bolt hole dia	0.000
Cj to flat	2.125
Partn number	3102-1000
Pilot dia	2.244-F
Series	1310
Bolt Holes	blank , N/A
Notes	1310 series flange yoke that customers can machine a custom pilot and bolt circle
