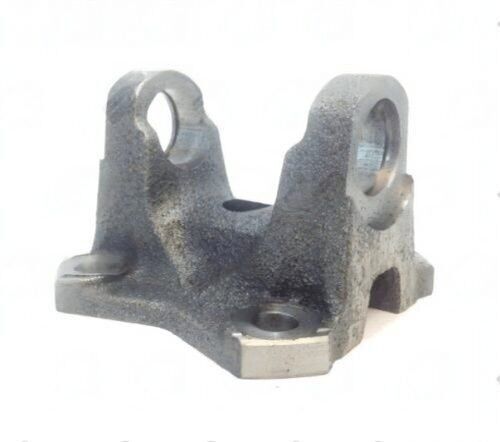

The 3102-063 Flange Yoke is a 1310 series component featuring a female pilot diameter of 0.630 inches and an outside snap ring. It has a bolt circle diameter of 3.938 inches and supports a cap with a diameter of 1.063 inches and a width of 3.219 inches. The yoke includes four bolt holes with a diameter of 0.489 inches. The flange face to centerline distance is 2.00 inches, and the swing diameter is 4.880 inches.
3102-063
$38.75
8 in stock
17 People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders from your dashboard
Description
Additional information
| Bolt circle dia | 3.938 |
|---|---|
| Bolt hole dia | 0.489 |
| Cj to flat | 2.000 |
| Partn number | 3102-063 |
| Pilot dia | 0.630-F |
| Series | 1310 |
| Bolt Holes | 4 |
