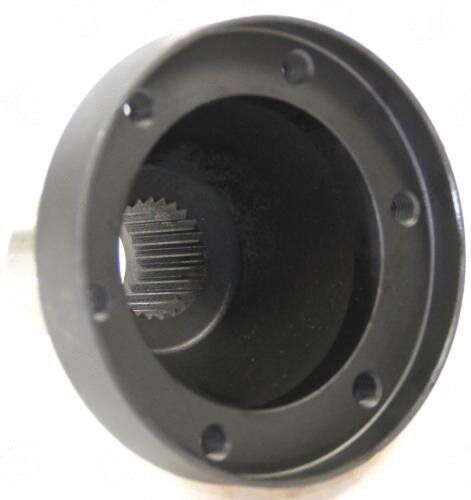

3101-262M2 – Companion Flanges – 1.146″ Splines Dia – 3.386″ Bolt Circle Dia – 1.400″ Hub Dia
$78.65
10 in stock
Description
When you encounter vibrations or misalignment in your drivetrain, the solution often lies in the companion flange. The 3101-262M2 Companion Flange is specifically engineered to address these issues. With a 1.146″ splines diameter and a 3.386″ bolt circle diameter, this flange ensures a secure connection to the differential or transmission output, providing the stability needed for optimal performance.
One common problem arises when the flange face is not perpendicular to the rotational axis. This misalignment can lead to runout, causing vibrations that can be mistaken for other driveline issues. The 3101-262M2 is designed to fit applications using 2352-1001 (plunge), making it a reliable choice for various setups. It features a 1.400″ hub diameter and a 3.937″ pilot diameter, which are critical for ensuring proper alignment and minimizing wear on connected components.
To install the 3101-262M2 correctly, follow these tips:
- Ensure all mating surfaces are clean before installation.
- Torque bolts in a star pattern to achieve even pressure.
- Check the face runout after installation to confirm alignment.
With 26 splines, this flange provides enhanced torque transfer, making it a robust option for your driveline needs. By addressing potential misalignment issues with the 3101-262M2, you can significantly reduce the risk of vibrations and extend the life of your drivetrain components.
| Bolt circle dia | 3.386 |
|---|---|
| Hub dia | 1.400 |
| Notes | Uses 2352-1001 (plunge) |
| Partn number | 3101-262M2 |
| Pilot dia | 3.937 |
| Remaining stock | <10 |
| Splines count | 26 |
| Splines dia | 1.146 |
| Through hole | 1.535 |
