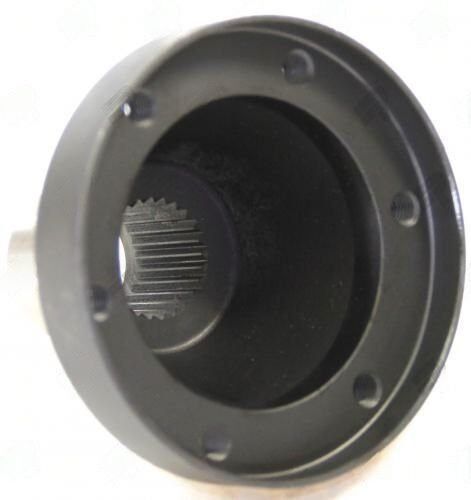

The 3101-262M companion flange is specifically designed for use with the 2352-1001 plunge component, ensuring a reliable connection in various drivetrain applications. This flange features a spline count of 26 and a spline diameter of 1.146 inches, which provides a robust interface that can handle significant torque loads without compromising performance. The hub diameter measures 1.450 inches, allowing for compatibility with a variety of mating components.
One of the critical aspects of the 3101-262M is its bolt circle diameter of 3.386 inches, which is engineered to match the corresponding yoke or flange. This precise dimension is essential for maintaining alignment and minimizing runout, which can lead to vibrations and premature wear in the driveline. The pilot diameter of 3.937 inches further aids in centering the flange during installation, ensuring that the flange face remains perpendicular to the rotational axis.
- Compatible with 2352-1001 plunge applications
- 26 splines with a diameter of 1.146 inches
- Hub diameter of 1.450 inches for secure fitment
- Through hole measures 1.535 inches
- Ensure proper torque and alignment during installation
When installing the 3101-262M, it’s crucial to clean all mating surfaces thoroughly and torque the bolts in a star pattern to achieve even clamping force. This attention to detail will help prevent runout issues and ensure optimal performance of your driveline system.
