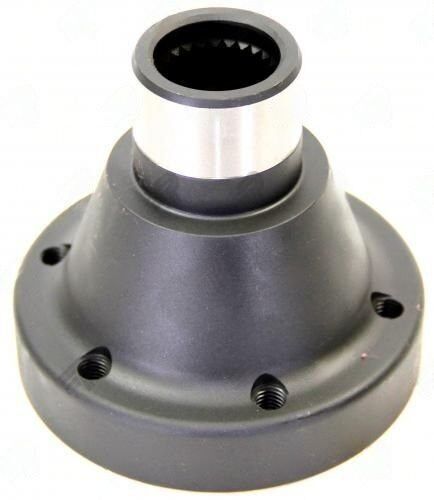

3101-262 – Companion Flanges – 1.146″ Splines Dia – 1.554″ Hub Dia – 26 Spline
$82.49
1 in stock
Description
The 3101-262 companion flange is engineered for precise integration with the 2352-1001 plunge component, making it essential for various drivetrain applications. The critical 1.146″ spline diameter ensures compatibility with a range of systems, allowing for smooth operation and efficient power transfer. With a spline count of 26, this flange is designed to handle the torque and load demands typical in performance and heavy-duty applications.
Key dimensions include a hub diameter of 1.554″ and a pilot diameter of 3.937″, which are crucial for maintaining alignment and minimizing runout. Proper alignment is vital; any misalignment can lead to vibrations that may cause premature wear on the driveline components. The bolt circle diameter of 3.386″ further ensures that the flange can be securely mounted to the differential, transfer case, or transmission output.
- Ensure clean mating surfaces for optimal performance.
- Torque bolts in a star pattern to prevent warping.
- Check face runout to avoid vibrations.
- Confirm compatibility with 2352-1001 plunge component.
- Inspect for wear regularly to maintain driveline efficiency.
In summary, the 3101-262 companion flange is a critical component that facilitates reliable connections within the driveline. Its specific dimensions and design features make it a dependable choice for technicians and builders alike.
| Bolt circle dia | 3.386 |
|---|---|
| Hub dia | 1.554 |
| Notes | Uses 2352-1001 (plunge) |
| Partn number | 3101-262 |
| Pilot dia | 3.937 |
| Remaining stock | <10 |
| Splines count | 26 |
| Splines dia | 1.146 |
| Through hole | 1.535 |
