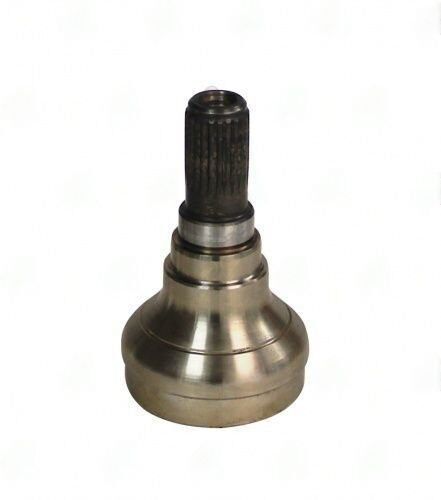

3053-233 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.875″ – End To Weld 4.325
$100.69
Description
When you’re working with the 3053-233 Stub & Midship Shaft, precision is key. This component is designed to fit seamlessly into your drivetrain setup, featuring a Bearing Dia of 1.181″ and a Butt Dia of 2.875″. Before installation, ensure you have the correct midship yoke; this shaft is specifically made for use with the 1404-231 or 3004-231 midship yokes.
One common mistake during installation is overlooking the spline count. The 3053-233 comes with 22/23 X 0.990 splines, so double-check that they match your application. The Splines Length is 1.420″, which is critical for proper engagement. Additionally, the End To Weld length of 4.325″ must align perfectly with your setup to avoid any misalignment issues that could lead to vibration or failure.
Here are some installation tips to keep in mind:
- Verify spline compatibility before installation.
- Check the phasing marks to ensure proper alignment.
- Torque all fasteners to the manufacturer’s specifications.
- Inspect the mating components for wear or damage.
- Consider balancing the assembly if you experience vibration.
With a Tube Dia Wall of 3.000X0.065, the 3053-233 is built to handle the stresses of high-torque applications. This shaft is a reliable choice for maintaining the integrity of your drivetrain. Remember, proper installation and alignment are crucial for optimal performance.
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.875 |
| End to weld | 4.325 |
| Notes | Use with 1404-231 or 3004-231 midship yoke |
| Partn number | 3053-233 |
| Remaining stock | <10 |
| Splines count dia | 22/23 X 0.990 |
| Splines length | 1.420 |
| Tube dia | 3.000 |
| Tube wall | 0.065" |
| Style | FIXED |
