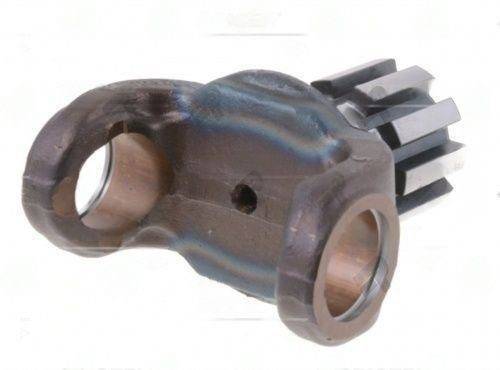

3-82-271 – Yoke Shafts – 1480 Series – 2.250″ Splines Dia – 10 Spline
$255.78
0 in stock
Description
The 3-82-271 yoke shaft is a critical component in your driveline, specifically designed for 1480 Series applications. With a major spline diameter of 2.250 inches, this yoke ensures a secure connection to the transmission or differential, allowing for efficient power transfer. The 10 splines provide a robust engagement, enhancing the overall durability of the driveline system.
Measuring 4.380 inches from the centerline to the end, this yoke shaft is engineered to accommodate axial movement during suspension travel, making it suitable for various vehicle applications. The spline length of 1.594 inches is optimized for precise fitment, ensuring that it aligns perfectly with the mating components.
When installing the 3-82-271, it’s essential to check the spline engagement depth and verify the phasing with the opposite yoke to prevent vibrations and premature wear. Here are some key points to consider:
- Check spline count and diameter for compatibility.
- Ensure proper phasing with the opposite yoke.
- Do not force spline entry; align carefully.
In summary, the 3-82-271 yoke shaft is engineered for reliability and performance in demanding applications. Its specifications make it an ideal choice for those looking to maintain or upgrade their driveline systems.
| C l to end | 4.380 |
|---|---|
| Partn number | 3-82-271 |
| Remaining stock | 10+ |
| Series | 1480 |
| Splines count | 10 |
| Splines dia | 2.250 |
| Splines length | 1.594 |
