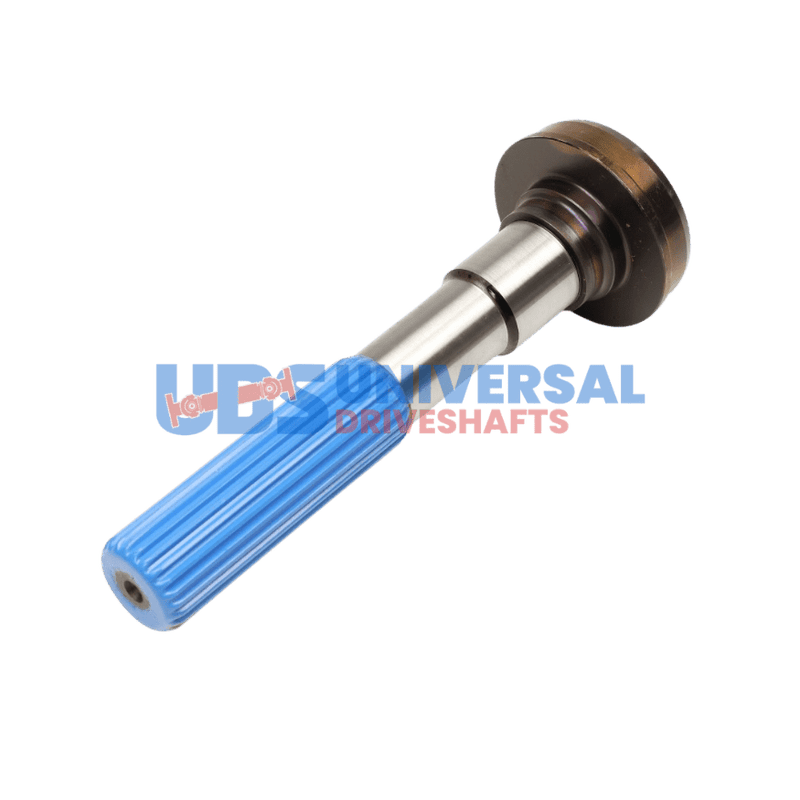

Splined Midship Tube Shaft Splines: 1.562×24 , Fits: 3.500 X .083 Tube 3-53-2571
$54.58
7 in stock
Description
Splined Stub & Midship Shaft is engineered to deliver reliable torque transmission from the transmission to the differential. This component features 23/24 X 1.562 splines, ensuring a secure fit within the driveline system. The 3.500″ tube diameter and .083″ wall thickness provide the necessary strength and rigidity to handle the demands of various applications.
In many vehicles, including those from manufacturers like BMW and Mercedes, the midship shaft plays a critical role in maintaining driveline alignment and performance. The precise dimensions of this shaft, including the 3.000″ spline length and 9.890″ end-to-weld measurement, are essential for proper installation and function. Always verify that the spline count and dimensions match your specific application to avoid compatibility issues.
When installing this shaft, keep the following in mind:
- Use boot 212007X, order separately.
- Ensure the shaft fits correctly and does not match 4180-10, 4180-45, or 4180-46.
- Check phasing marks during installation to maintain proper alignment.
- Torque all fasteners to the manufacturer’s specifications.
- Balance the assembly if any vibration occurs during operation.
By focusing on the details and ensuring compatibility, this Splined Stub & Midship Shaft will enhance the overall performance and reliability of your driveline system.
| Tube dia | 3.500 |
|---|---|
| Tube wall | 0.083" |
| Butt dia | 3.344 |
| Splines length | 3.000 |
| End to weld | 9.890 |
| Bearing dia | 1.574 |
| Brand | UDS |
| Notes | Use boot 212007X, order separate. Will not fit 4180-10, 4180-45, 4180-46 |
| Splines count dia | 23/24 X 1.562 |
| Style | Slip |
