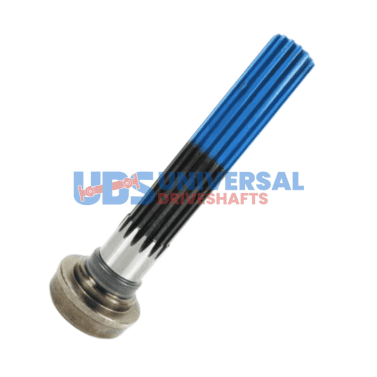

Splined Midship Tube Shaft 3-53-1531 – 1.500×16 spline, 3.000 X .083 tube 1.575″ Bearing
$48.90
+50 in stock
Description
Splined Stub & Midship Shafts are critical components in any driveline setup, especially when dealing with high torque applications. A common issue arises when a vehicle experiences vibrations or power loss during acceleration, often due to a worn or improperly sized shaft. This Splined Stub & Midship Shaft, featuring 16 x 1.500 splines and a robust 3.000″ tube diameter, is designed to handle the torque path effectively, ensuring that power flows smoothly from the transmission to the differential.
With a tube wall thickness of 0.083″ and an end-to-weld measurement of 9.200″, this shaft provides the necessary strength and stability to withstand demanding conditions. The 6.580″ spline length ensures a secure fit, while the 1.574″ bearing diameter allows for optimal rotation and minimal friction.
When installing this shaft, it’s essential to:
- Verify the spline count and ensure it matches your application.
- Check for proper phasing marks to maintain alignment.
- Torque all bolts to the manufacturer’s specifications to prevent loosening.
In summary, if you’re facing issues with torque transmission or vibrations, this Splined Stub & Midship Shaft is your solution. Its design and specifications make it a reliable choice for maintaining driveline integrity.
| Tube dia |
3.000 |
|---|---|
| Tube wall |
0.083" |
| Butt dia |
2.844 |
| Splines length |
6.580 |
| End to weld |
9.200 |
| Bearing dia |
1.574 |
| Class |
LD |
| Brand |
UDS |
| Partn number |
3-53-1531 |
| Splines count dia |
16 x 1.500 |
| Style |
Slip |
