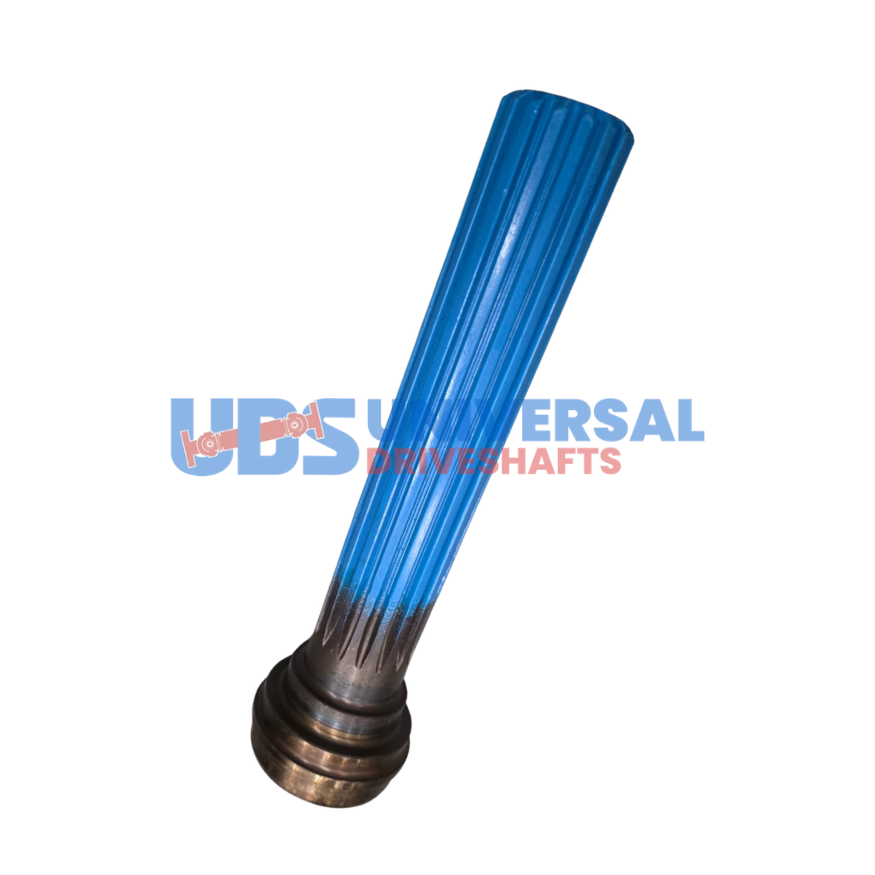

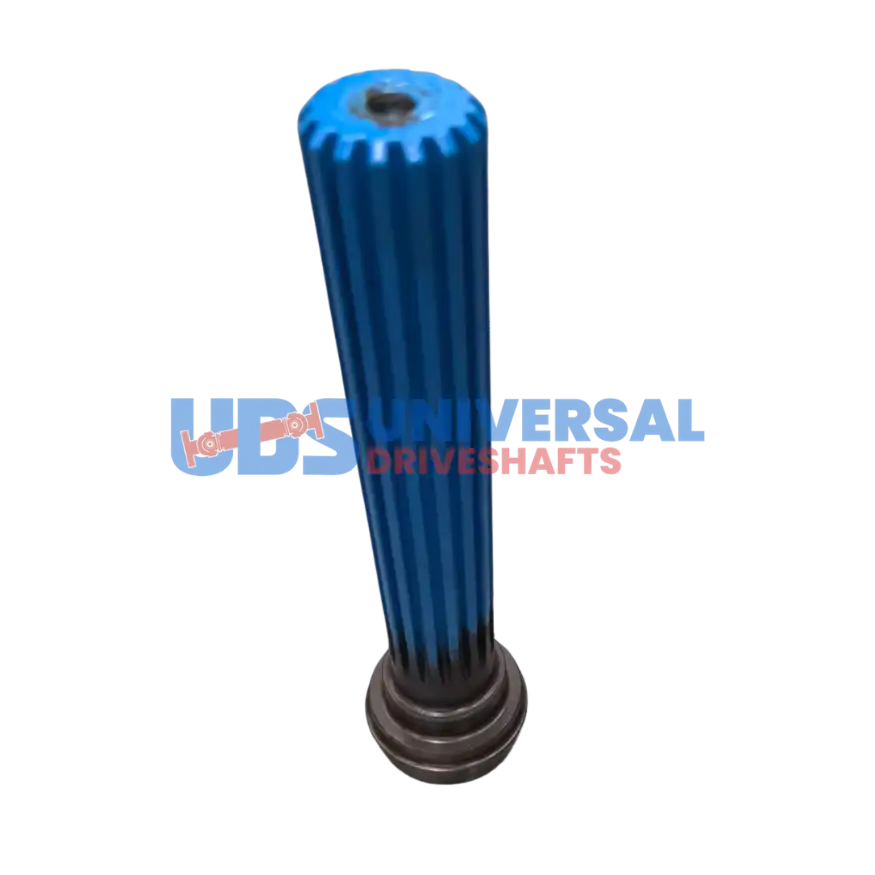

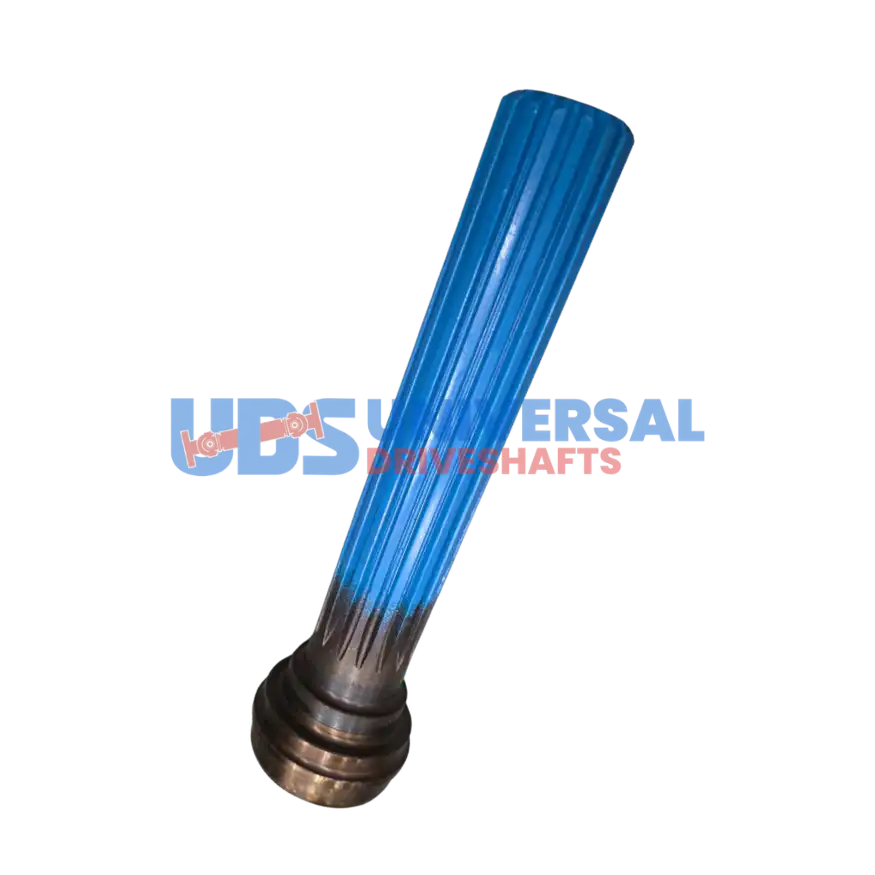

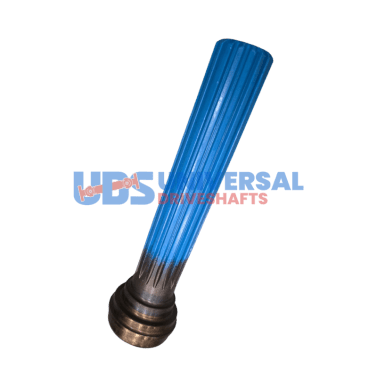

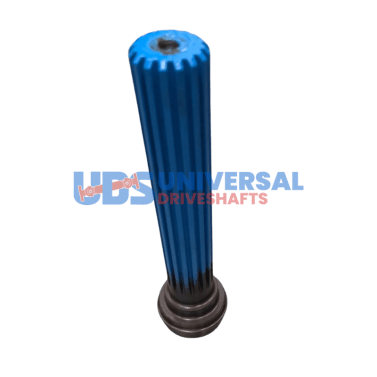

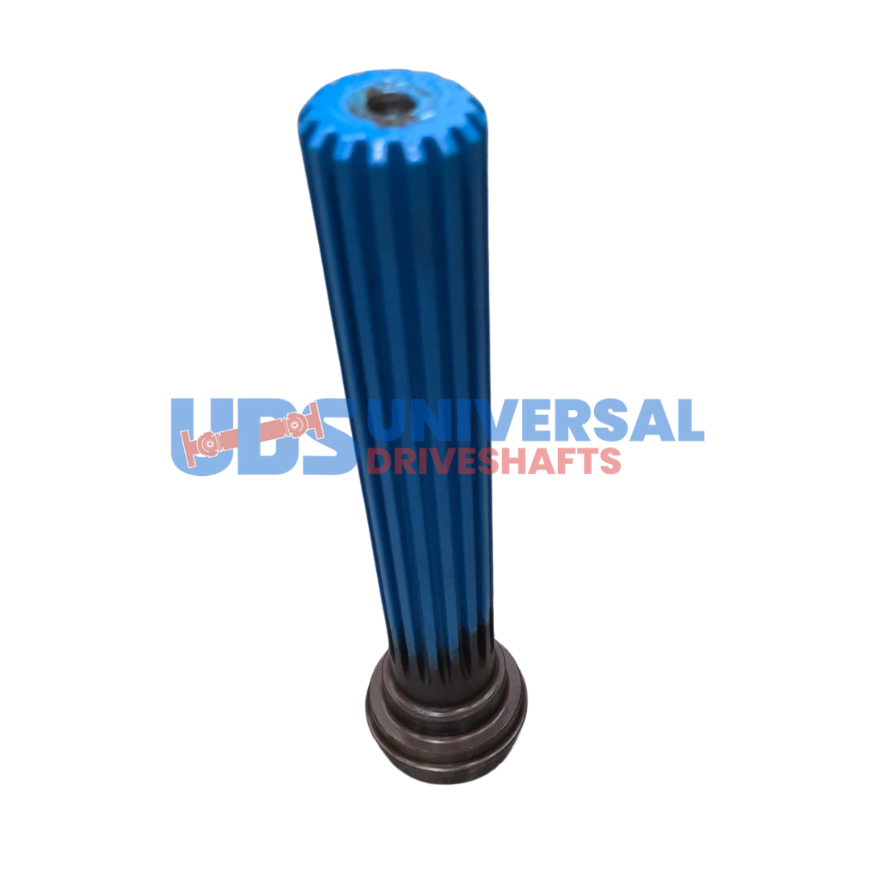

3-40-2512U Super Duty Solid Butt Fits Tube 2.500×0.083 Can Be Machined To Any Tube Size – HARDENED SPLINES 7.000″ End To Weld 8.875″
$73.98
50 in stock
Description
The 3-40-2512U Stub & Midship Shaft is engineered for solid butt applications, featuring 16 x 1.500 splines that provide a robust connection for transmitting torque effectively. The spline count and diameter are critical as they directly influence the torque capacity and compatibility with your driveline system. This shaft’s 2.344″ butt diameter ensures a snug fit into the corresponding components, which is essential for maintaining alignment and minimizing wear.
With a length of 6.530″ for the splines and an end to weld measurement of 8.760″, this shaft is designed to meet specific installation requirements. It’s crucial that these dimensions match your application precisely to avoid any issues with balance or critical speed limits. The tube diameter wall of 2.500X0.120 adds structural integrity, allowing this shaft to handle the demands of high-torque applications.
- Verify spline count and diameter for compatibility.
- Ensure the butt diameter fits your existing components.
- Check the end to weld measurement for proper installation.
- Inspect for any signs of wear or damage before installation.
- Balance the shaft if vibrations occur during operation.
In summary, the 3-40-2512U Stub & Midship Shaft is a reliable choice for those needing a solid butt design that can withstand the rigors of performance and fleet applications alike. Its specifications are tailored for optimal performance in demanding environments.
| Bearing dia | N/A |
|---|---|
| Butt dia | 2.344 |
| End to weld | 8.760 |
| Splines count dia | 16 x 1.500 |
| Splines length | 6.530 |
| Notes | SOLID BUTT |
| Tube dia | 2.500 |
| Tube wall | 0.120 |
| Style | Slip |
