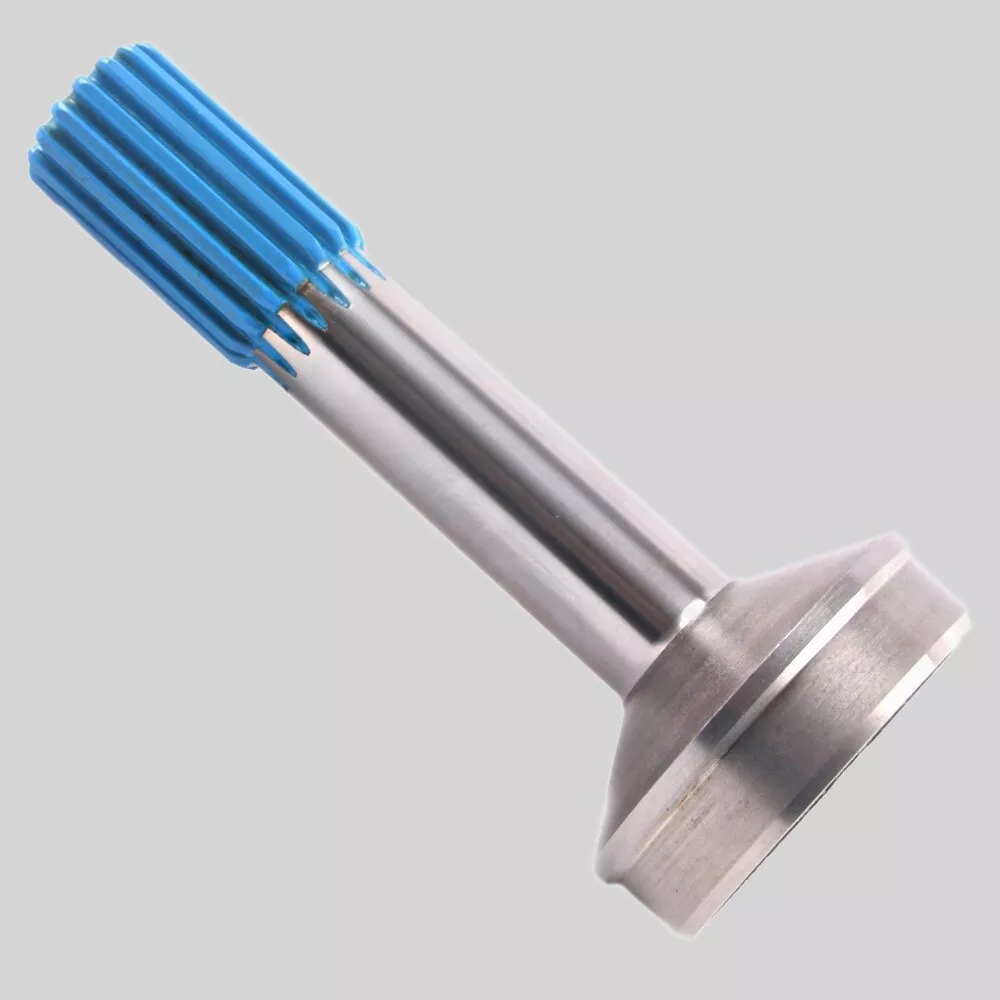

3-40-1561 Spline Stub Shaft 1.500 x 16 spline, Fits 3.500 X .083 Tube
$52.00
+50 in stock
Description
The 3-40-1561 Stub & Midship Shaft is engineered for optimal torque transmission in driveline systems. With a tube diameter of 3.500 inches and a wall thickness of 0.083 inches, this shaft is designed to handle significant loads while maintaining structural integrity. The 16 x 1.500 splines ensure a secure fit with compatible slip yokes, allowing for smooth operation and efficient power transfer.
Critical to the performance of this shaft is its 2.500-inch spline length, which directly affects the engagement with the slip yoke. This measurement is crucial; if it doesn’t match the application precisely, you could face issues like premature wear or failure under load. Additionally, the end-to-weld measurement of 7.344 inches is vital for proper installation, ensuring that the shaft aligns correctly with the transmission and differential.
- Verify spline count and diameter for compatibility.
- Ensure the tube length matches application specifications.
- Check for proper phasing during installation.
- Torque bolts to manufacturer specifications to prevent loosening.
- Balance the assembly if any vibrations are detected.
In summary, the 3-40-1561 Stub & Midship Shaft is a critical component for any driveline setup, providing the necessary strength and reliability for demanding applications.
| Tube dia | 3.500 |
|---|---|
| Tube wall | 83 |
| Butt dia | 3.344 |
| Splines length | 2.500 |
| End to weld | 7.344 |
| Style | Slip |
| Use with | Slip Yoke |
| Splines count dia | 16 x 1.500 |
