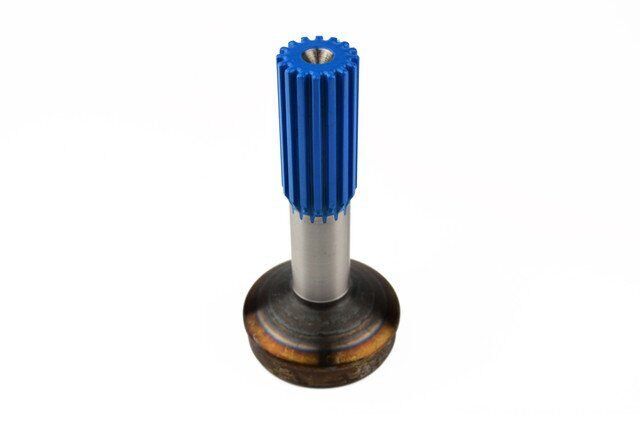

3-40-1531 Splined Stub Shafts , Splined : 1.5 X 16 , Fits: 3.500 X 0.083
$33.84
+50 in stock
Description
The 3-40-1531 Stub & Midship Shaft is a critical component in any driveline setup, designed to efficiently transmit torque from the transmission to the differential. With a spline count of 16 x 1.500, this shaft ensures a secure connection that can handle the demands of various applications. The tube diameter measures 3.500″ with a wall thickness of 0.083″, providing the strength needed to withstand high torque loads.
When installing the 3-40-1531, it’s essential to ensure that the length from end to weld is precisely 6.562″ and that the spline length is 3.000″. These measurements are crucial for maintaining proper alignment and preventing premature wear. Additionally, the slip style of this shaft allows for necessary adjustments during installation, making it versatile for different setups.
- Verify phasing marks during installation to avoid vibration issues.
- Check runout to ensure smooth operation.
- Torque bolts to manufacturer specifications for optimal performance.
- Balance the assembly if any vibrations are detected post-installation.
In summary, the 3-40-1531 Stub & Midship Shaft is engineered for reliability and performance. Its robust design and precise specifications make it a vital part of your driveline system, ensuring efficient power transfer and durability.
| Partn number | 3-40-1531 |
|---|---|
| Tube dia | 3.500 |
| Tube wall | 0.083" |
| Butt dia | 3.344 |
| Splines length | 3.000 |
| End to weld | 6.562 |
| Splines count dia | 16 x 1.500 |
| Style | Slip |
