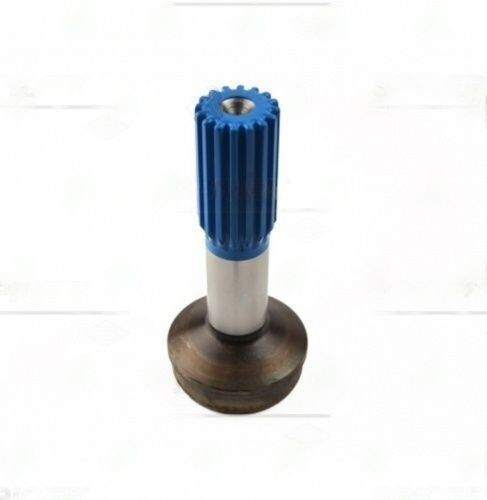

3-40-1101 Stub Shaft 1.500 x 16 splines, Fits 3.000 X 0.083 Tube
$41.89
32 in stock
Description
3-40-1101 is a Stub & Midship Shaft that plays a critical role in transmitting torque from the transmission to the differential. If you notice vibrations or unusual noises during operation, this component could be the culprit. A worn or damaged stub shaft can lead to misalignment, causing excessive wear on U-joints and other driveline components.
With a spline count of 16 x 1.500 and a tube diameter of 3.000″, this shaft is engineered to handle the demands of high-torque applications. The slip style allows for necessary movement while maintaining a secure connection. If you’re experiencing a vibration that correlates with vehicle speed, it’s essential to check the runout and balance of this shaft. An out-of-balance condition can lead to premature failure of the entire driveline system.
Key specifications of the 3-40-1101 include:
- Butt Diameter: 2.844″
- End to Weld Length: 5.938″
- Splines Length: 2.500″
- Tube Wall Thickness: 0.083″
When replacing or installing the 3-40-1101, ensure that you verify the phasing marks and torque bolts to the manufacturer’s specifications. This attention to detail will help prevent future issues and maintain the integrity of your driveline system. Remember, proper installation and balance are crucial for optimal performance.
| Butt dia | 2.844 |
|---|---|
| End to weld | 5.938 |
| Partn number | 3-40-1101 |
| Remaining stock | <10 |
| Splines count dia | 16 x 1.500 |
| Splines length | 2.500 |
| Tube dia | 3.000 |
| Tube wall | 0.083" |
| Style | Slip |
