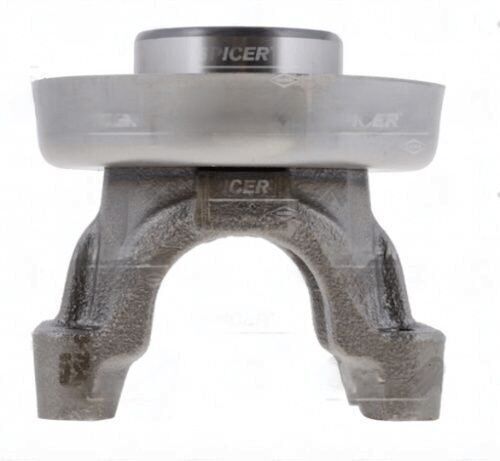

3-4-8051-1 – End Yoke – 1480 Series – 1.774″ Splines Dia – 2.500″ Hub Dia
$173.89
1 in stock
Description
The 3-4-8051-1 End Yoke is a critical component designed to connect the driveshaft to the powertrain or axle assembly effectively. With a spline diameter of 1.774″ and a hub diameter of 2.500″, this yoke is specifically engineered for 1480 Series applications. This ensures it aligns perfectly with the corresponding U-joint dimensions, which is essential for maintaining driveline integrity.
Key specifications include a spline count of 34 and a Cj to end measurement of 4.469″. These dimensions are crucial for achieving the correct engagement and alignment, which directly affects the performance and durability of the driveline system. The 3-4-8051-1 also features a through hole of 2.250″, allowing for easy installation and secure fastening.
- Check spline engagement depth during installation.
- Ensure proper phasing with the opposite yoke.
- Never force spline entry to avoid damage.
- Compatible with 1480 Series U-joints.
- Inspect mating components for wear and alignment.
In summary, the 3-4-8051-1 End Yoke is engineered to handle the demands of high-torque applications while providing a reliable connection in the driveline. Its precise dimensions and robust design make it an essential choice for performance builders and fleet technicians alike.
| Cj to end | 4.469 |
|---|---|
| Hub dia | 2.500" |
| Partn number | 3-4-8051-1 |
| Series | 1480 |
| Splines count | 34 |
| Splines dia | 1.774 |
| Style | BS |
| Through hole | 2.250" |
