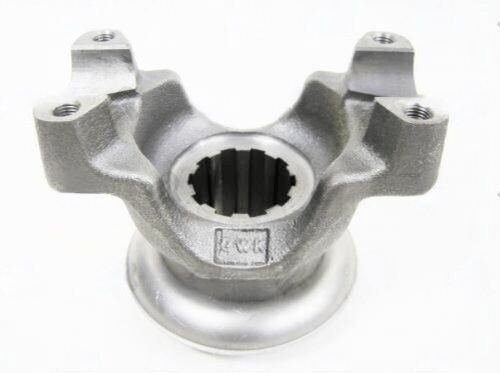

3-4-6631 – End Yoke – 1.500″ Splines Dia – 1410 Series
$84.24
1 in stock
10 People watching this product now!
Description
The 3-4-6631 End Yoke connects the driveshaft to the transmission with a 1.500″ spline diameter and fits 1410 Series applications.
Full Description
The 3-4-6631 End Yoke is essential for connecting your driveshaft to the transmission or differential, ensuring efficient torque transfer. If you’re experiencing vibrations or unusual noises, a worn or damaged yoke could be the issue. Look for signs like excessive play or misalignment, which often indicate that the yoke needs replacement.
This specific end yoke features a 1.500" spline diameter, 1.812" hub diameter, and is designed for 1410 Series applications. With 10 splines, it provides a robust connection that can handle the demands of high-torque environments. If you notice a 2x-per-revolution vibration that disappears in neutral, the end yoke could be the culprit, especially if it’s not engaging properly with the mating components.
Proper installation is critical for performance. Make sure to check the spline engagement depth and verify phasing with the opposite yoke. Never force the spline entry, as this can lead to further damage. The 3-4-6631 End Yoke is built to restore correct function and ensure your driveline operates smoothly.
- Spline Diameter: 1.500"
- Hub Diameter: 1.812"
- Series: 1410
- Splines Count: 10
- Through Hole: 2.000"
Replacing your yoke with the 3-4-6631 will help eliminate those annoying vibrations and restore the driveline's integrity.
Additional information
| Cj to end | 3.719 |
|---|---|
| Hub dia | 1.812 |
| Partn number | 3-4-6631 |
| Series | 1410 |
| Splines count | 10 |
| Splines dia | 1.500" |
| Style | BS |
| Through hole | 2.000" |
