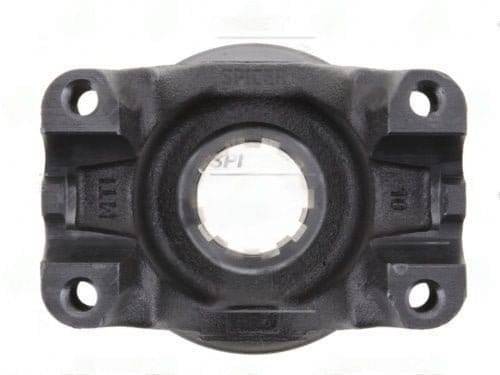

3-4-4421-1X End Yoke 1480 , Spline:s 1.500 x 10 , Hub Dia: 1.938 , Center U joint To End: 4.030

The 3-4-4421-1X is a critical component in your driveline setup, specifically designed as an End Yoke for 1480 Series applications. With a spline diameter of 1.500 inches, this yoke ensures a precise fit into the corresponding transmission or differential output. The 10 splines provide robust engagement, which is essential for transferring torque effectively without slippage.

The hub diameter of 1.938 inches allows for a secure connection to the driveshaft, while the 4.031-inch center-to-end distance is crucial for maintaining proper alignment and phasing with the opposite yoke. This alignment is vital to prevent vibrations and ensure smooth operation under load.

Additionally, the through hole measuring 2.000 inches facilitates easy installation and alignment during assembly. The style designation of BS indicates a specific design that meets the requirements for light-duty applications, making it versatile for various setups.

• Check spline engagement depth during installation.
• Ensure proper phasing with the opposite yoke to avoid driveline vibrations.
• Inspect the yoke for wear or damage before installation.
• Compatible with 1480 Series U-joints for seamless integration.
• Use appropriate torque specifications when fastening to companion flanges.

In summary, the 3-4-4421-1X End Yoke is engineered for reliability and performance in demanding applications, making it a vital part of your driveline system.
