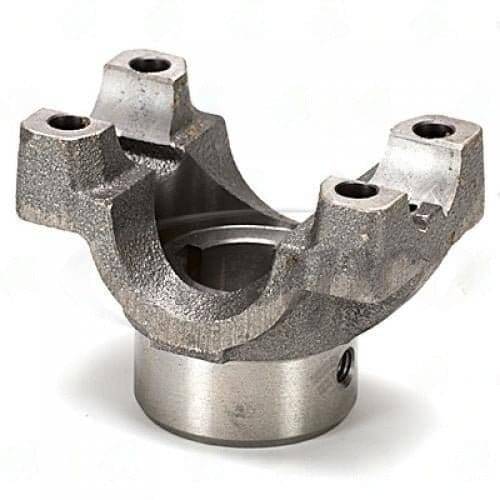

3-4-283-1 – End Yoke – 1350HR Series – 1.250″ Bore Dia – 2.25″ Hub Dia

The 3-4-283-1 End Yoke is a crucial component in the driveline, specifically designed for the 1350HR Series. This yoke connects the driveshaft to the transmission or differential, ensuring a robust and reliable connection. With a bore diameter of 1.250 inches and a hub diameter of 2.25 inches, this yoke is engineered to handle the torque loads typical of light-duty applications.

The centerline-to-end measurement of 3.00 inches allows for proper alignment and fitment in various setups. The keyway at the EAR position, measuring 0.31 inches, provides additional security during operation, preventing slippage under load. The 1.50-inch through hole facilitates easy installation and attachment to the driveshaft or companion flange.

When installing the 3-4-283-1, ensure that you check the spline engagement depth and verify the phasing with the opposite yoke. This yoke is designed to fit seamlessly with 1350HR Series U-joints, making it a versatile choice for performance builders and fleet technicians alike.

• 1.250″ Bore Diameter
• 2.25″ Hub Diameter
• 3.00″ Centerline to End Measurement
• Keyway EAR-0.31 for secure attachment
• 1.50″ Through Hole for easy installation

In summary, the 3-4-283-1 End Yoke is engineered to meet the demands of various driveline applications, providing the reliability and performance needed for both everyday use and high-performance builds.
