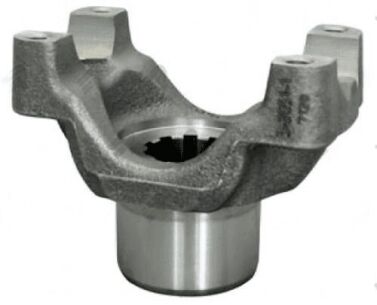

3-4-2231-1 End Yoke – Splined Bore 1350 Series, Strap Style, 1.500×10 Spline, 2.253 Hub
$70.87
+50 in stock
18 People watching this product now!
Description
The 3-4-2231-1 is a 1350 series pinion yoke, with a 10 spline configuration. It features a spline diameter of 1.500 inches and a hub diameter of 2.253 inches. The through hole measures 2.185 inches, and the center-to-end measurement is 3.905 inches. BS Style.
Additional information
| Cj to end | 3.905 |
|---|---|
| Hub dia | 2.253 |
| Partn number | 3-4-2231-1 |
| Series | 1350 |
| Splines count | 10 |
| Splines dia | 1.500" |
| Style | BS |
| Through hole | 2.185 |
