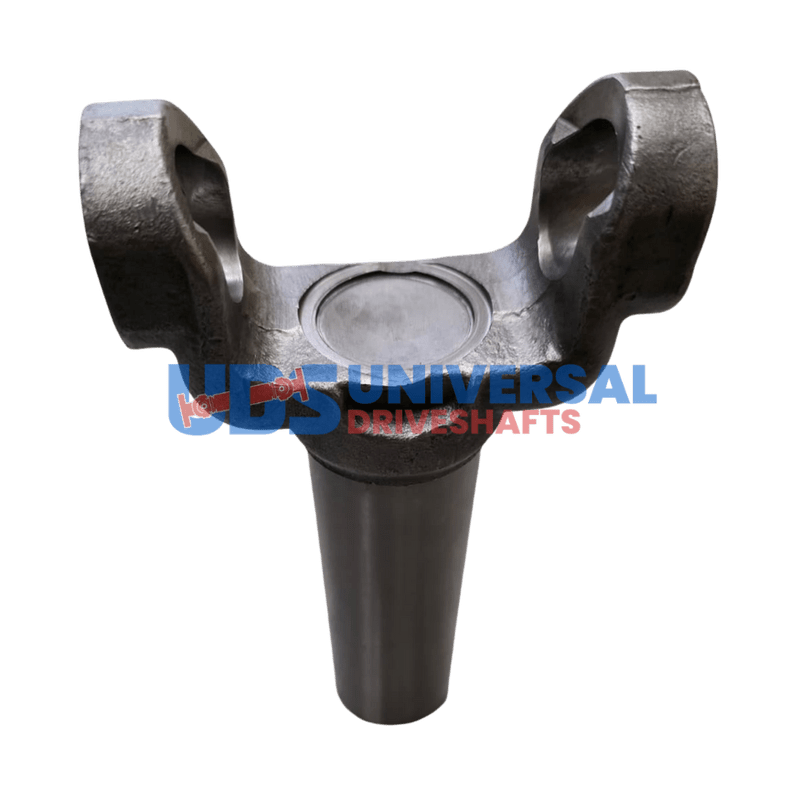

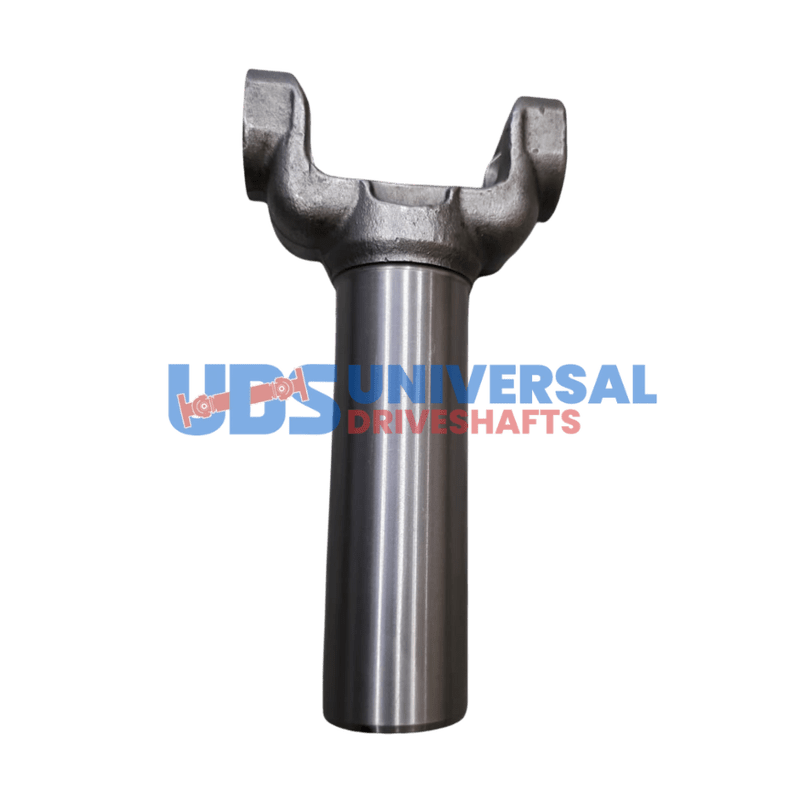

The Transmission Yoke is a crucial component that connects the driveshaft to the transmission, ensuring efficient power transfer. This specific yoke features a 1.378″ spline diameter, which is essential for proper engagement with the transmission output shaft. The 31/32 splines provide a secure fit, preventing slippage and ensuring reliable performance under load.
With a hub diameter of 1.886″, this yoke is designed to fit seamlessly into the driveline setup. The length from the centerline to the end measures 7.750″, which is critical for maintaining the correct phasing with the opposite yoke. Proper phasing is vital to avoid vibrations and ensure smooth operation, especially in high-performance applications.
This yoke is nickel plated, offering enhanced corrosion resistance and durability, making it suitable for various environments. When installing, ensure that the spline engagement depth is checked, and always verify the phasing with the opposite yoke to prevent potential issues.
- Check spline count: 31/32 for compatibility.
- Verify spline diameter: 1.378″ for proper fit.
- Ensure hub diameter: 1.886″ aligns with your setup.
- Inspect for proper phasing to avoid vibrations.
- Utilize nickel plating for added protection against corrosion.
This Transmission Yoke is designed for 1410 Series applications, making it an ideal choice for both fabrication shops and performance builders looking for reliability and strength in their driveline components.
