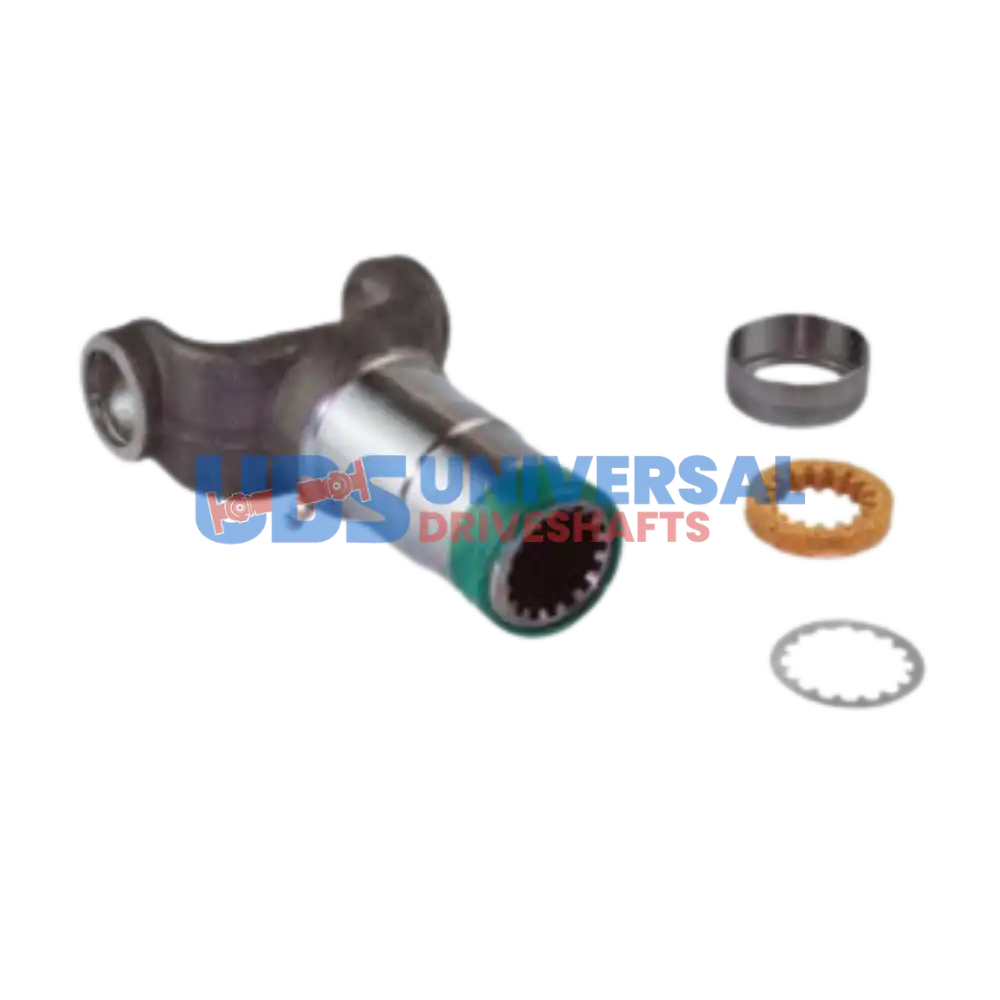

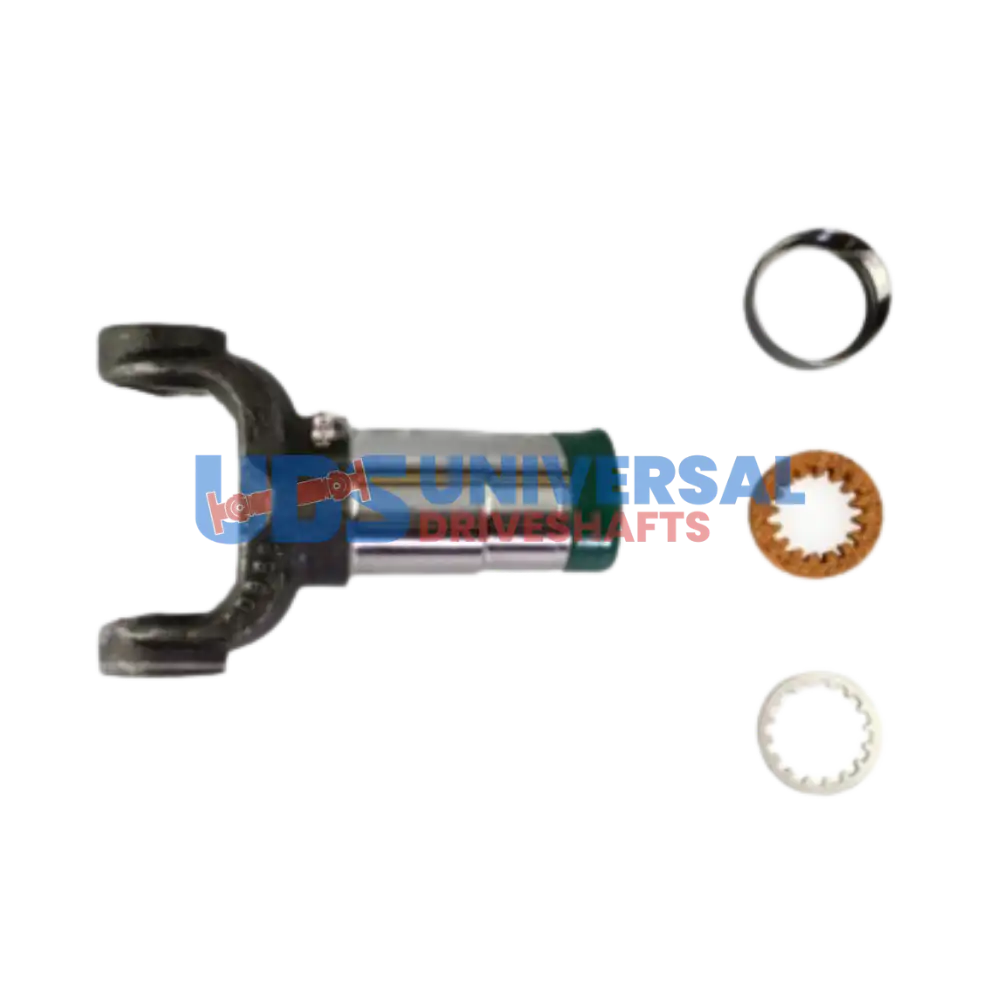

3-3-1481KX Slip Yoke 1410 series, Splines: 1.375×16 , Centerline To End 5.812 Inch
$59.89
14 in stock
Description
The 3-3-1481KX Slip Yoke is a critical component for 1410 Series driveshafts, providing reliable torque transfer and allowing for axial movement during suspension travel. Before installation, ensure that the spline count matches your output shaft; this yoke features 16 splines with a diameter of 1.375 inches. A common mistake is mismatching spline counts, which can lead to improper fitment and potential failure.
When preparing to install the 3-3-1481KX, check the spline engagement depth to ensure it fits snugly without forcing it into place. This slip yoke has a centerline to end measurement of 5.812 inches, so make sure you have the correct alignment with your companion flange or driveshaft. Proper phasing with the opposite yoke is essential to maintain balance and reduce vibration.
- Verify spline count: 16 splines
- Check spline diameter: 1.375 inches
- Confirm center U joint to end length: 5.812 inches
- Ensure proper phasing with the opposite yoke
- Avoid forcing spline entry to prevent damage
With the right installation techniques, the 3-3-1481KX Slip Yoke will deliver dependable performance, making it a solid choice for your driveline needs.
| Center u joint to end |
5.812 |
|---|---|
| Partn number |
3-3-1481KX |
| Remaining stock |
<10 |
| Series |
1410 |
| Splines count |
16 |
| Splines dia |
1.375 |
