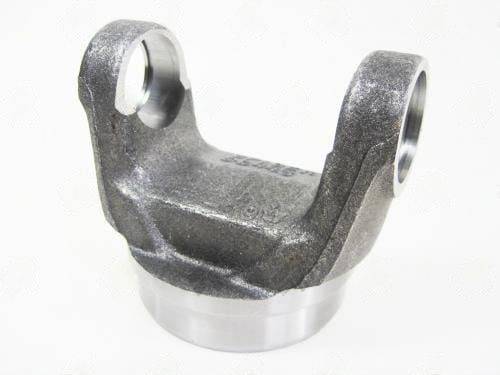

Name: 3-28-57-1 Weld Tube Yoke 1350 Ser' , Fits: 2.750 x 0.083 , Butt Dia: 2.594 Inch CL To Weld: 2 Inch SOLID BUTT
Brand: UDS
SKU: 3-28-57-1
Availability: InStock

Description

The 3-28-57 is part of the 1350 series and is made from steel. It has a tube diameter of 2.750 inches and a wall thickness of 0.083 inches. The butt diameter measures 2.844 inches, IT IS A SOLID BUTT WELD YOKE THAT CAN BE MACHINED TO 2.000 X 0.125 , with a centerline to weld distance of 2.000 inches. This component also features a joint angle of 30 degrees, making it suitable for a variety of applications requiring durability and precise fitting.

Butt dia	2.594
Center u j to weld	2.000"
Material	STEEL
Partn number	3-28-57-1
Remaining stock	>10
Series	1350
Tube dia wall	2.750X0.083
Brand	UDS
Notes	SOLID BUTT – CAN BE TURN DOWN TO 2.000 X 0.125

Butt dia	3.000"
Center u j to weld	2.000"
Material	ALUMINUM
Notes	USED FOR CARBON FIBER APPLICATION
Partn number	3126-30CF
Remaining stock	<10
Series	1310
Tube dia wall	3.260X0.130"
Brand	UDS

Butt dia	2.844
Center u j to weld	1.750"
Material	STEEL
Partn number	3R26-30
Remaining stock	<10
Series	3R
Tube dia wall	3.000X0.083
Brand	UDS

Butt dia	2.875
Center u j to weld	1.688
Material	STEEL
Notes	USED FOR CARBON FIBER APPLICATION
Partn number	3026-30
Remaining stock	<10
Series	1300
Tube dia wall	3.000X0.065
Brand	UDS

Butt dia	2.375
Center u j to weld	1.312
Material	STEEL
Partn number	2-28-1947
Remaining stock	>10
Series	1210
Tube dia wall	2.500X0.065
Brand	SPICER

Butt dia	3.383
Center u j to weld	1.940"
Material	STEEL
Partn number	3R26-35
Remaining stock	<10
Series	3R
Tube dia wall	3.500X0.065
Brand	UDS

Butt dia	3.257
Center u j to weld	2.500"
Material	ALUMINUM
Partn number	3R26-35A
Remaining stock	<10
Series	3R
Tube dia wall	3.500X0.125
Brand	UDS

Butt dia	1.875
Center u j to weld	1.750"
Material	STEEL
Notes	FOREIGN
Partn number	1226-201
Remaining stock	>10
Series	1251
Tube dia wall	2.000×0.065
Brand	UDS

Butt dia	2.625
Center u j to weld	2.250"
Material	STEEL
Notes	.500" LONGER THEN THE OE WY
Partn number	3R26-27
Remaining stock	>10
Series	3R
Tube dia wall	2.750X0.065
Brand	UDS

Butt dia	1.571
Center u j to weld	1.688
Material	STEEL
Partn number	3026-17
Remaining stock	<10
Series	1300
Tube dia wall	1.750X0.095
Brand	UDS
