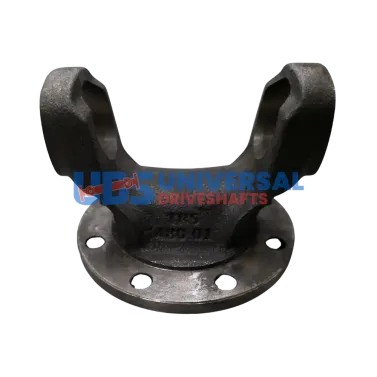

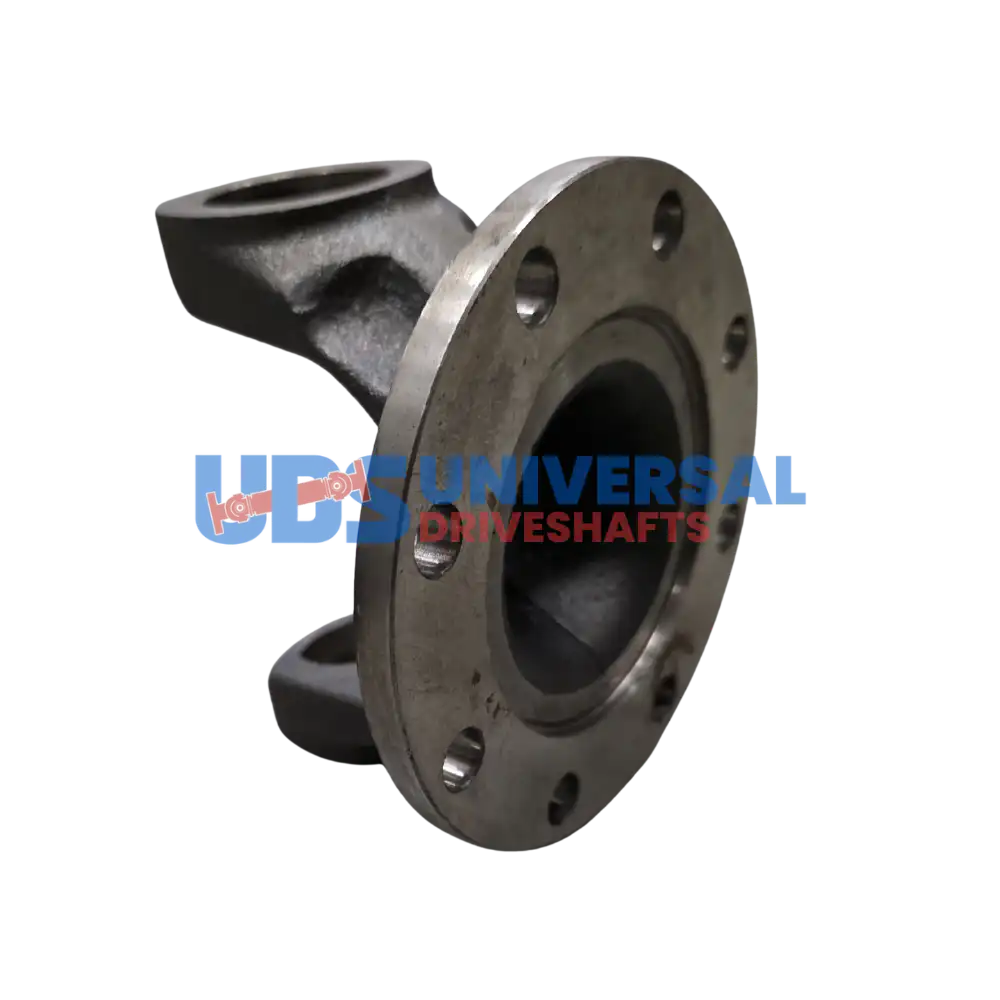

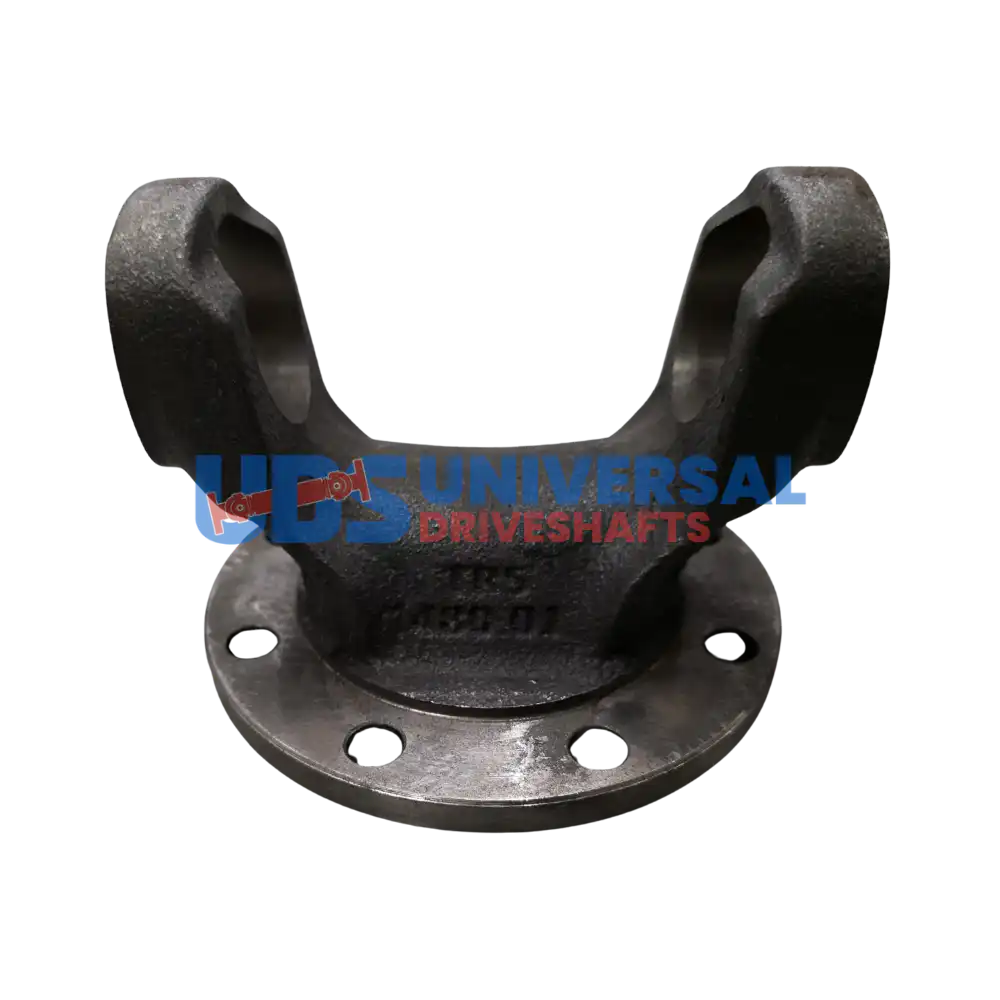

When you’re ready to install the 3-2-1159C Flange Yoke, it’s crucial to ensure proper fit and alignment. This yoke is part of the 1480 Series, designed to connect your driveshaft to the transmission or differential effectively. Before you slide this yoke onto the output shaft, check the spline engagement depth and ensure it matches your application. A common mistake is mismatching the spline count, which can lead to premature wear or failure.
The 3-2-1159C features a bolt circle diameter of 3.996″ and 8 bolt holes with a diameter of 0.394″. The pilot diameter measures 2.954″, and the distance from the center of the joint to the flat surface is 2.625″. These dimensions are critical for ensuring a secure fit and optimal torque transfer. Always verify that the yoke is phased correctly with the opposite yoke to prevent vibrations during operation.
- Check spline count and engagement depth before installation.
- Ensure proper phasing with the opposite yoke.
- Torque fasteners to the manufacturer’s specifications.
- Inspect the mating surfaces for wear or damage.
- Use a torque wrench for accurate fastening.
With the right installation techniques, the 3-2-1159C will deliver reliable performance in demanding conditions, making it an essential component for your driveline setup.
