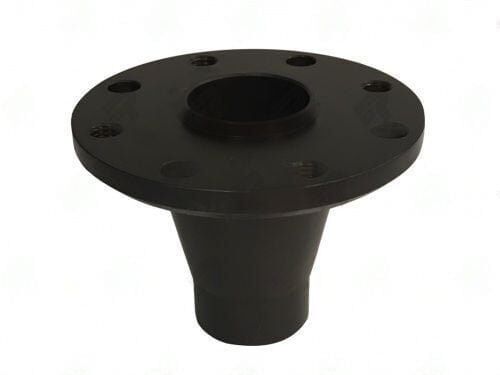

3-1-32JK – Companion Flanges – 1.401″ Splines dia – 32 Splines – 4.250″ Bolt Circle Dia
$127.83
1 in stock
Description
The 3-1-32JK Companion Flange is engineered specifically for the front transfer case adapter of the 2007-2017 Jeep JK. This component plays a crucial role in connecting the transfer case to the driveshaft, ensuring a reliable transfer of power. With a spline count of 32 and a spline diameter of 1.401 inches, it is designed to handle the torque loads typical of off-road and on-road driving conditions.
Critical to the performance of the 3-1-32JK is its bolt circle diameter of 4.250 inches and a pilot diameter of 2.000 inches. These dimensions ensure a secure fit and proper alignment with the mating components, which is essential for minimizing runout and vibration. The hub diameter of 1.943 inches, combined with a through hole of 2.000 inches, allows for efficient fluid dynamics, which is vital in maintaining the longevity of the driveline.
When installing the 3-1-32JK, it’s important to clean all mating surfaces thoroughly and torque the bolts in a star pattern to ensure even pressure distribution. Additionally, checking the face runout during installation can prevent future vibration issues that could lead to premature wear of the driveline components.
- Compatible with 2007-2017 Jeep JK T-case Adapter
- 32 splines for robust torque handling
- 1.401″ spline diameter for precise fit
- 4.250″ bolt circle for secure attachment
- Ensure proper alignment to minimize runout
| Bolt circle dia | 4.250 |
|---|---|
| Hub dia | 1.943 |
| Notes | Front 2007-2017 JEEP JK T-case Adapter |
| Partn number | 3-1-32JK |
| Pilot dia | 2.000 |
| Remaining stock | <10 |
| Splines count | 32 |
| Splines dia | 1.401 |
| Through hole | 2.000 |
