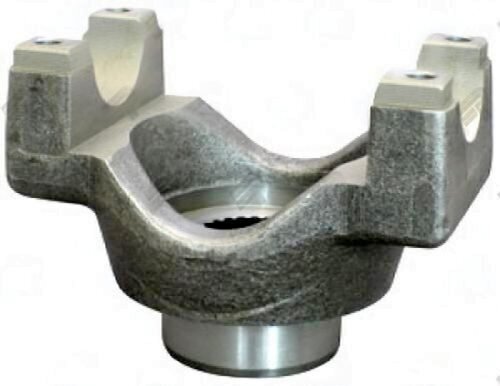

2904-27 – End Yoke – 7290 Series – 1.172″ Splines Dia – 1.688″ Hub Dia
$100.08
1 in stock
Description
The 2904-27 End Yoke is a crucial component for connecting the driveshaft to the powertrain in CHRYSLER 7.25 AND 8.25 applications. This yoke features a 7290 Series design, which is essential for ensuring compatibility with the corresponding U-joint. With a spline diameter of 1.172″ and a hub diameter of 1.688″, the 2904-27 is engineered to deliver reliable torque transfer and withstand the demands of your driveline setup.
When installing the 2904-27, it’s important to pay attention to several key specifications to ensure proper fit and function:
- Splines Count: 27
- Cj to End: 2.750″
- Through Hole: 1.062″
- Style: BS
Proper installation involves verifying the spline engagement depth and ensuring that the yoke is phased correctly with the opposite yoke. Never force the spline entry, as this can lead to premature wear or failure. The 2904-27 End Yoke is designed to handle the torque and stresses typical in CHRYSLER driveline systems, making it a reliable choice for both performance builds and fleet applications. Ensure you check the spline count and diameter before installation to avoid compatibility issues. With the right setup, the 2904-27 will provide the durability and performance you need.
| Cj to end | 2.750" |
|---|---|
| Hub dia | 1.688 |
| Notes | CHRYSLER 7.25 AND 8.25 |
| Partn number | 2904-27 |
| Series | 7290 |
| Splines count | 27 |
| Splines dia | 1.172 |
| Style | BS |
| Through hole | 1.062 |
