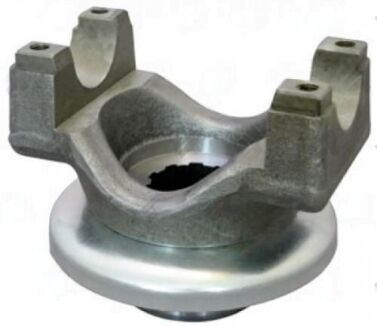

2904-10 – End Yoke – 7290 Series – 1.188″ Splines Dia – 1.875″ Hub Dia
$98.80
1 in stock
18 People watching this product now!
Description
End Yoke 2904-10 connects driveshaft to transmission with 1.188″ splines and 1.875″ hub diameter.
Full Description
The 2904-10 End Yoke is engineered for robust performance in your driveline system. With a 1.188" spline diameter, this yoke ensures a precise fit into the corresponding transmission or differential output, allowing for optimal torque transfer. The 10 splines provide a secure engagement, which is crucial for maintaining alignment and preventing slippage during operation.
Measuring 1.875" in hub diameter, the 2904-10 fits seamlessly with 7290 Series U-joints, ensuring compatibility with the specific cap diameter and cross width required for reliable operation. This yoke is particularly designed for applications involving the CHRYSLER 8.75 STRAP KIT (PART NUMBER: 2970-20), making it a go-to choice for those working on Chrysler drivetrains.
When installing the 2904-10, keep these key points in mind:
- Check spline engagement depth to ensure proper fit.
- Verify phasing with the opposite yoke to prevent vibrations.
- Never force spline entry; align carefully to avoid damage.
With a Cj to end measurement of 3.375" and a through hole of 1.500", this yoke is designed for effective axial movement, accommodating suspension travel without compromising performance. The 2904-10 End Yoke is a critical component for maintaining the integrity and efficiency of your driveline system.
Additional information
| Cj to end | 3.375 |
|---|---|
| Hub dia | 1.875 |
| Notes | CHRYSLER 8.75 STRAP KIT PART NUMBER: 2970-20 |
| Partn number | 2904-10 |
| Series | 7290 |
| Splines count | 10 |
| Splines dia | 1.188 |
| Style | BS |
| Through hole | 1.500" |
