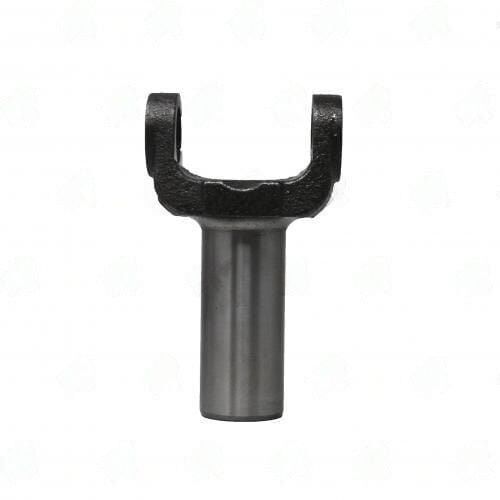

2903-305 – Transmission Yokes – 7290 Series – 29/30 X 1.312 Splines – 1.681″ Hub Dia
$103.24
Description
When installing the 2903-305 Transmission Yoke, it’s crucial to ensure compatibility with your Mitsubishi Montero’s OE CV yoke. This conversion yoke features a 7290 series design with 29/30 splines and a spline diameter of 1.312 inches. The hub diameter measures 1.681 inches, and the center U-joint to end distance is 5.500 inches. These specifications are essential for achieving the right fit and function in your driveline setup.
Before you slide this yoke onto the transmission, double-check the spline count and diameter against your output shaft. A common mistake is mismatching spline counts, which can lead to installation headaches. Make sure to verify that the spline engagement depth is adequate and that the yoke is properly phased with the opposite yoke to prevent vibrations during operation.
- Check spline count: 29/30 X 1.312
- Verify hub diameter: 1.681 inches
- Ensure center U-joint to end measurement is 5.500 inches
- Confirm compatibility with Mitsubishi Montero
- Inspect for any signs of wear or damage before installation
With the right tools and attention to detail, installing the 2903-305 can be straightforward. Remember, a well-installed yoke is key to maintaining driveline integrity and performance.
| Center u joint to end | 5.500 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.681 |
| Notes | Conversion yoke for Mitsubishi Montero with OE CV yoke. |
| Partn number | 2903-305 |
| Remaining stock | <10 |
| Series | 7290 |
| Splines count dia | 29/30 X 1.312 |
