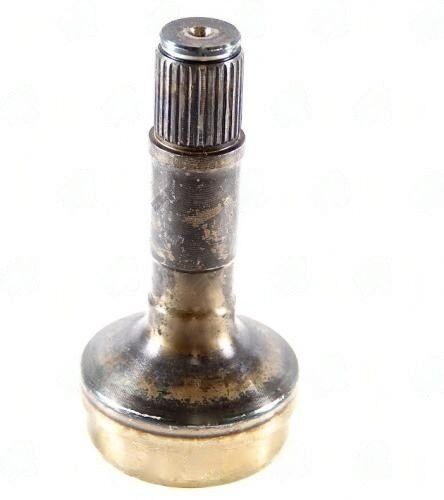

2842-251 – Stub & Midship Shaft – 30 X 0.950 Splines – Butt Dia 2.375″ – Tube Dia Wall 2.500X0.065
$92.89
Description
When working with the 2842-251 Stub & Midship Shaft, it’s crucial to ensure that you have the right fit for your application. This shaft features 30 X 0.950 splines, a butt diameter of 2.375″, and a tube wall thickness of 0.065″. The overall length of the splines is 923″, and the end to weld measurement is 4.544″. This component is specifically designed to be used with the 2852-9501 CVJ Kit, making it essential for proper installation.
Before you start the installation process, double-check the spline count and ensure that it matches your transmission output. A common mistake is mismatching spline sizes, which can lead to significant issues down the line. Additionally, verify that the tube diameter and wall thickness meet the specifications required for your application. Proper phasing of the shaft is also critical; make sure to align the marks correctly to avoid vibrations.
- Check spline count against the transmission output.
- Ensure the butt diameter is compatible with the yoke.
- Inspect the tube wall thickness for any signs of wear or damage.
- Torque all bolts to the manufacturer’s specifications.
- Balance the driveshaft if you notice any vibrations after installation.
By following these guidelines, you can ensure a successful installation of the 2842-251 Stub & Midship Shaft, maintaining the integrity of your driveline system.
| Butt dia |
2.375 |
|---|---|
| End to weld |
4.544 |
| Notes |
Used with 2852-9501 CVJ Kit |
| Partn number |
2842-251 |
| Remaining stock |
>10 |
| Splines count dia |
30 X 0.950 |
| Splines length |
923 |
| Tube dia |
2.500 |
| Tube wall |
0.065" |
| Style |
CVJ |
