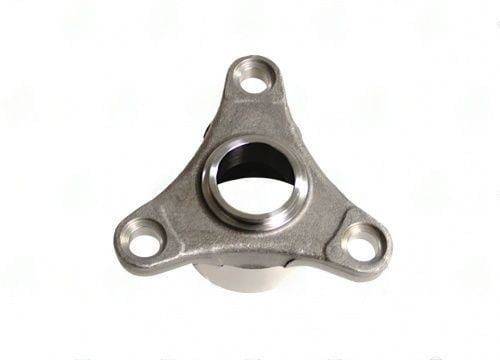

When you’re working on a driveline for a Mercedes or Chrysler, the 2826-100 tri-prong component is a critical piece. This part features a bolt circle diameter of 110MM, which is essential for ensuring a secure fit within the drivetrain assembly. Before installation, double-check the bolt hole diameter of 12MM and the bolt hole pilot diameter of 18 mm to avoid any mismatches that could lead to failure.
The robust design includes a butt diameter of 2.344″ and a nose bushing diameter of 31MM, providing the necessary structural integrity to handle the stresses of operation. The face to weld measurement is 1.500″, which is crucial for aligning with the mating components in your setup.
Here are some installation tips to keep in mind:
- Verify the bolt circle diameter matches your existing setup to prevent misalignment.
- Ensure the bolt hole pilot diameter is compatible with your fasteners.
- Inspect the tube diameter wall of 2.500X0.083 for any signs of wear or damage before installation.
Remember, the 2826-100 is specifically designed for use in Mercedes and Chrysler applications, so make sure to confirm fitment before proceeding. Proper installation will ensure optimal performance and longevity of your driveline system.
