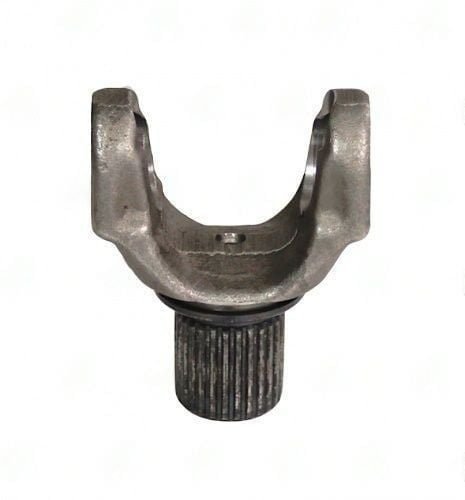

When working with the 2782-271 Yoke Shaft, it’s crucial to ensure proper fitment for BMW front shaft applications. This yoke features 27 splines with a major spline diameter of 1.147 inches, and a spline length of 1.181 inches. Before installation, double-check the spline count and diameter against the output shaft to avoid common mix-ups. The centerline to end measurement is 2.750 inches, which is essential for ensuring correct alignment and phasing with the opposite yoke.
Here are some key installation tips:
- Verify the spline engagement depth before sliding the yoke onto the shaft.
- Ensure proper phasing with the opposite yoke to prevent vibrations.
- Check the end to radius distance of 1.300 inches for compatibility with your setup.
- Never force the spline entry; it should slide on smoothly.
- Inspect the mating components for wear to ensure a reliable connection.
The 2782-271 yoke is classified as LD, making it suitable for light-duty applications. Proper installation and maintenance will help extend the life of your driveline components and maintain performance. Remember, attention to detail during installation can save you from future headaches.
