2726-202
$78.24
8 in stock
12 People watching this product now!
Description

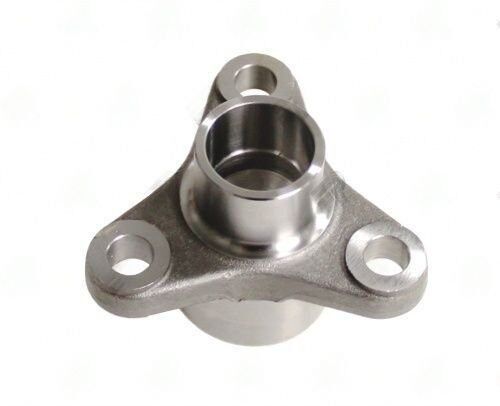

The 2726-202 is a tri-prong designed for use on BMW shafts. It has a bolt circle diameter of 78mm and a hole-to-hole distance of 67.55mm. The bolt hole diameter is 12mm, and the nose bushing diameter is 28mm.
This part features a tube diameter of 2.000 inches, with a tube wall thickness of 0.083 inches. The butt diameter measures 1.844 inches, and the face-to-weld distance is 1.125 inches. It is classified as light-duty (LD) and is manufactured by PTI.
Additional information
| Bolt circle dia | 78MM |
|---|---|
| Bolt hole dia | 12MM |
| Butt dia | 1.844 |
| Face to weld | 1.125" |
| Nose bushing dia | 28MM |
| Notes | BMW |
| Partn number | 2726-202 |
| Remaining stock | <10 |
| Tube dia wall | 2.000X0.083 |
| Bolt hole pilot dia | N/A |
