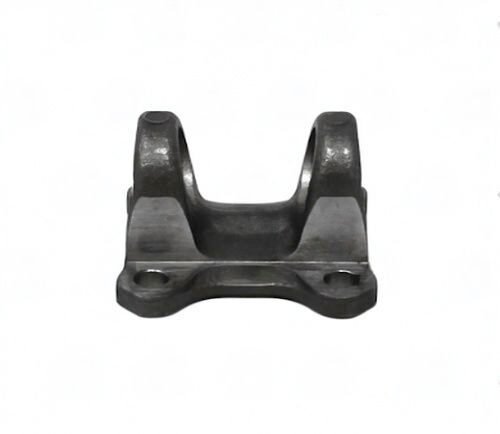

2702-840 – Flange Yokes – 1751 Series – Bolt Circle Dia 3.301″ – Pilot Dia 1.850, M

When you’re ready to install the 2702-840 Flange Yoke, ensure you have the right tools and knowledge to make the job smooth. This yoke is designed for the 1751 Series, providing a solid connection between your driveshaft and the mating components. With a bolt circle diameter of 3.301 inches and four bolt holes measuring 0.413 inches each, it guarantees a secure fit. The pilot diameter of 1.850 inches (male) is essential for proper alignment and torque transfer.

Before sliding this yoke into place, double-check the spline engagement depth. It’s crucial to match the spline count with the output shaft to avoid any misalignment issues. A common mistake is forcing the spline entry, which can lead to damage. Instead, ensure that the yoke aligns correctly with the opposite yoke to maintain proper phasing.

• Check spline count against the output shaft before installation.
• Verify bolt circle diameter and pilot diameter for compatibility.
• Ensure all bolt holes are clear and free of debris.
• Torque fasteners to the manufacturer’s specifications for secure installation.
• Inspect the mating components for wear or damage before assembly.

By following these steps, you can ensure that the 2702-840 Flange Yoke performs reliably in your driveline setup. Remember, proper installation is key to avoiding future issues.
