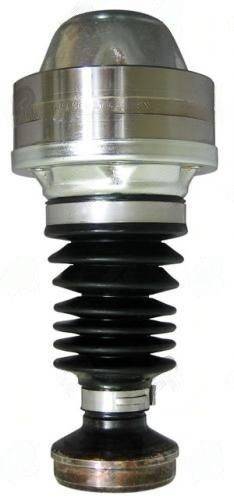

2690-100 – Cv Double Joints Heads – CVJ Series – Bolt Circle Dia 3.386″ – Butt Dia 2.375
$352.56
1 in stock
Description
The 2690-100 Cv Double Joints Heads is engineered to deliver constant velocity power transfer, especially suited for the 01-05 Ford Escape and Mazda Tribute at the rear shaft transaxle. This component is critical for maintaining smooth torque output through varying angles, a necessity for vehicles that experience diverse driving conditions.
With a bolt circle diameter of 3.386 inches and a butt diameter of 2.375 inches, the 2690-100 is designed to fit seamlessly into the driveline. The pilot diameter measures 3.937 inches, ensuring proper alignment and engagement with other driveline components. Additionally, the end-to-weld measurement of 6.125 inches (compressed) is essential for accurate installation and performance.
When installing the 2690-100, consider the following:
- Ensure proper spline engagement for optimal performance.
- Use new boots and clamps to prevent grease contamination.
- Pack with the specified grease amount to maintain joint integrity.
Failure symptoms to watch for include clicking noises during turns or visible damage to the boot. These signs indicate that the joint may need replacement to avoid further driveline issues. The 2690-100 is a reliable choice for maintaining the driveline efficiency of the Ford Escape and Mazda Tribute, ensuring that your vehicle performs at its best.
| Bolt circle dia | 3.386 |
|---|---|
| Bolt hole dia | 330 |
| Butt dia | 2.375 |
| End to weld | 6.125 COMPRESSED |
| Notes | Fits 01-05 Ford Escape/Mazda Tribute rear shaft at transaxle |
| Partn number | 2690-100 |
| Pilot dia | 3.937 |
| Remaining stock | <10 |
| Style series | CVJ |
| Tube dia wall | 2.500X0.065 |
