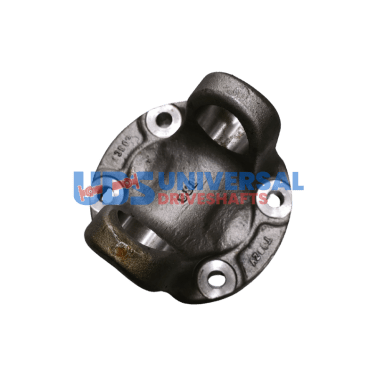

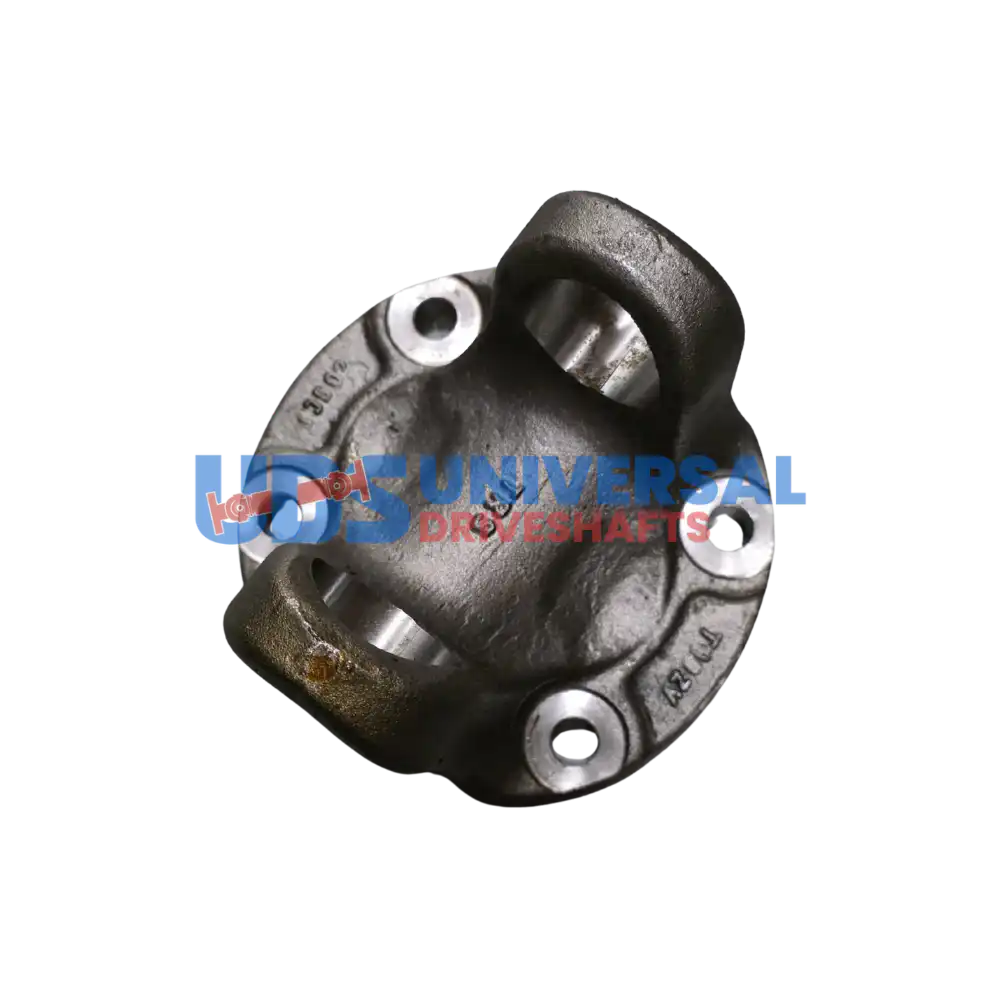

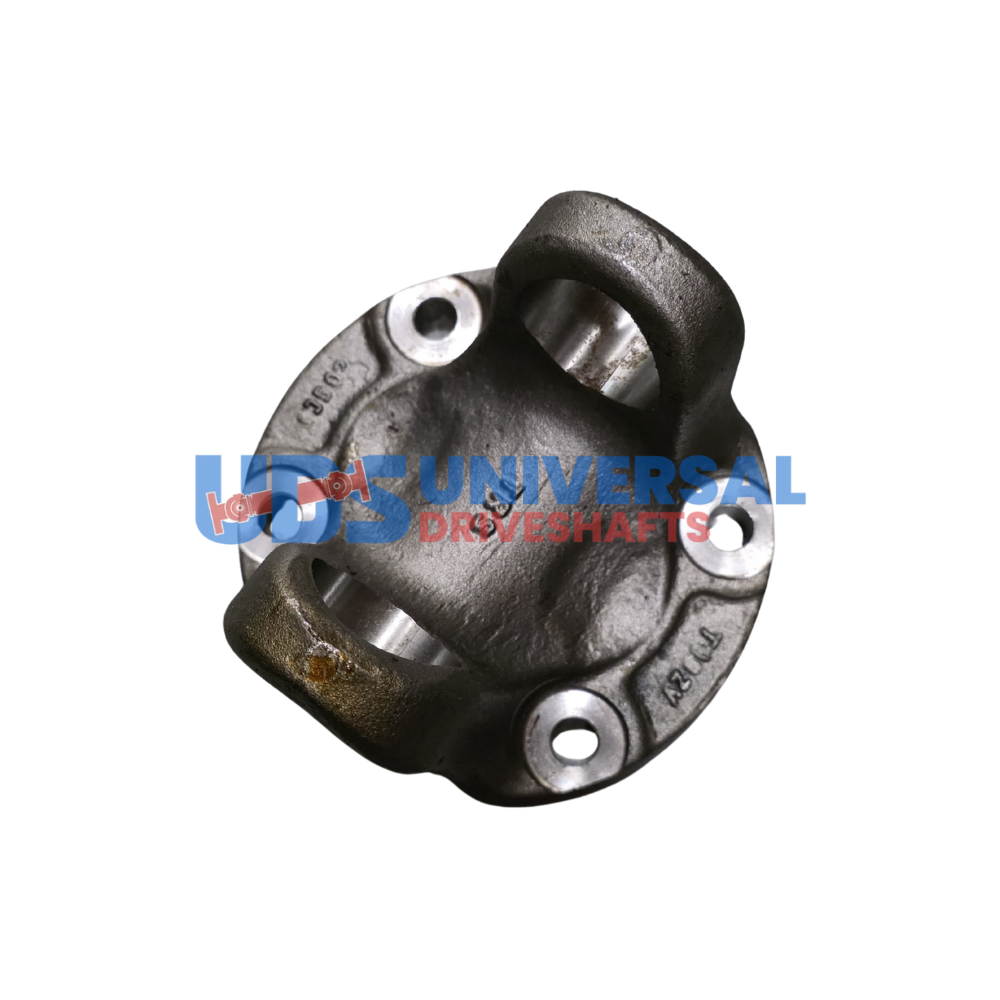

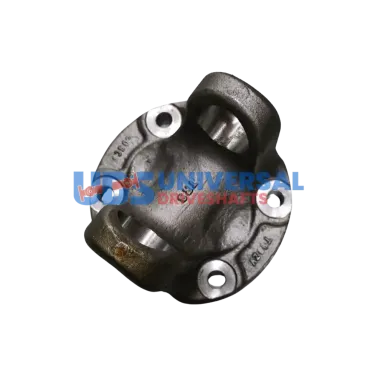

2687352300570 Flange Yoke 42×119 2035 Series , XS155 CL To End: 3 Inch – 687.35

When you’re working with the 2687352300570 Flange Yoke, it’s crucial to ensure a proper fit for your driveline system. This yoke features a 687.35 Series design, making it suitable for high-performance applications. The bolt circle diameter measures 130 mm, while the bolt hole diameter is 13 mm, providing a solid connection to your components.

Before installation, check the spline engagement depth and ensure it matches your output. A common mistake is mismatching the spline count, which can lead to premature wear or failure. The pilot diameter is XS 152 mm, so make sure to verify that it fits snugly into the mating component. Additionally, the yoke’s length from the centerline to the end is 76 mm, which is essential for proper alignment during installation.

• Verify the bolt circle diameter of 130 mm for compatibility.
• Ensure the bolt hole diameter of 13 mm matches your existing setup.
• Check the pilot diameter of XS 152 mm for a precise fit.
• Confirm the Cj to end length of 3.000″ aligns with your driveline requirements.
• Inspect the overall condition of the mating components to avoid issues.

By focusing on these details, you can ensure a successful installation of the 2687352300570 Flange Yoke. This component is designed to handle the demands of your driveline, providing reliable performance for years to come.
