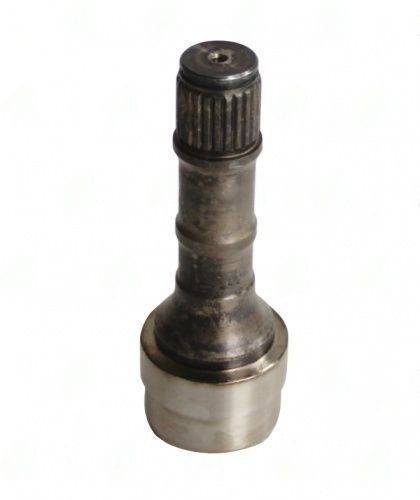

2642-241 – Stub & Midship Shaft – 24 X 1.020 Splines – Butt Dia 1.875″ – Tube Dia Wall 2.000×0.065
$99.30
Description
The 2642-241 Stub & Midship Shaft is a crucial component for KIA FRONT and VOLVO REAR driveline applications. This shaft transmits torque efficiently from the transmission to the differential, ensuring smooth operation and reliable performance. With a spline count of 24 X 1.020 and a butt diameter of 1.875″, this shaft is engineered to handle the specific demands of these vehicles.
One of the key aspects of the 2642-241 is its construction. The tube diameter wall measures 2.000 x 0.065, which contributes to its strength and critical speed limits. When installing this shaft, it’s essential to ensure that the length of 789″ and the end-to-weld measurement of 4.875″ match the application precisely. Any discrepancies can lead to vibration issues or premature failure.
For optimal performance, follow these installation tips:
- Check the phasing marks during installation to maintain proper alignment.
- Verify that the spline count and diameter match the transmission output.
- Torque all bolts to the manufacturer’s specifications to prevent loosening.
- Balance the shaft if vibration is detected after installation.
In summary, the 2642-241 Stub & Midship Shaft is designed for specific applications, ensuring compatibility and performance. Its robust construction and precise specifications make it an essential part of the driveline system for KIA and VOLVO vehicles.
| Butt dia |
1.875 |
|---|---|
| End to weld |
4.875 |
| Notes |
KIA FRONT, VOLVO REAR |
| Partn number |
2642-241 |
| Remaining stock |
>10 |
| Splines count dia |
24 X 1.020 |
| Splines length |
789 |
| Tube dia |
2.000 |
| Tube wall |
0.065" |
| Style |
CVJ |
