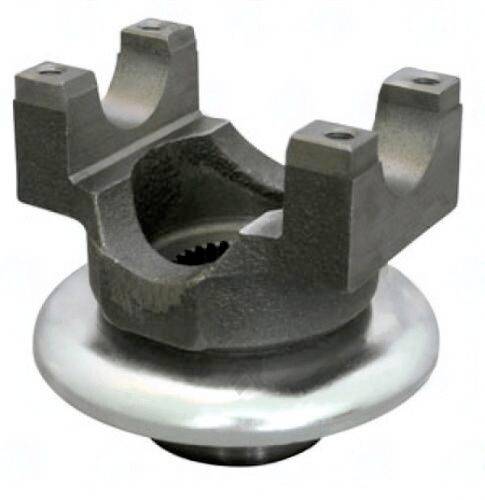

2604-29 – End Yoke – 7260 Series – 1.263″ Splines Dia – 1.875″ Hub Dia

The 2604-29 pinion yoke belongs to the 7260 series and is specifically designed for the Chrysler 8.75″ and 9.25″ differentials with a spline count of 29. This light-duty (LD) yoke has a spline diameter of 1.263 inches, a hub diameter of 1.875 inches, a through hole measurement of 1.500 inches, and a centerline to end distance of 3.188 inches. It features a BS style and requires strap kit 2670-10 for installation.

Caution is advised when using this yoke, as it can be easily confused with the Dana 60 yoke; both have 10-bolt covers. A quick way to distinguish between the two is to check the shape of the gasket cover: if it is perfectly round, it indicates a Chrysler 8.75″ differential; if not, it’s likely a Dana 60.

Applications for the Chrysler 8.75″ (10 & 29 spline) include:

• 1/2 Ton Dodge Pickup: 1958 – 1973 (Rear)
• Challenger: 1970 – 1974 (Rear)
• Coronet: 1963 – 1973 (Rear)
• Dart: 1966 – 1972 (Rear)
• Imperial: 1957 – 1968 (Rear), 1969 – 1970 (Rear)
• Monaco: 1963 – 1974 (Rear)
• New Yorker: 1963 – 1973 (Rear)
• Polara: 1963 – 1974 (Rear)
• Ram Charger: 1974 – 1975 (Rear)
• Satellite: 1968 – 1974 (Rear)

Applications for the Chrysler 9.25″ include:

• 1 Ton Chrysler Van: 1978 – 2003 (Rear)
• 1/2 Ton Chrysler Van: 1970 – 2004 (Rear)
• 1/2 Ton Dodge Pickup: 1974 – 2006 (Rear)
• 3/4 Ton Chrysler Van: 1974 – 2002 (Rear)
• 3/4 Ton Dodge Pickup: 1974 – 1999 (Rear)
• Dakota: 1988 – 2005 (Rear)
• Durango: 1998 – 2004 (Rear)
• Fifth Avenue: 1973 – 1981 (Rear)
• Imperial: 1974 – 1975 (Rear)
• Monaco: 1975 – 1985 (Rear)
• Polara: 1970 – 1974 (Rear)
• Ram Charger: 1974 – 1993 (Rear)
