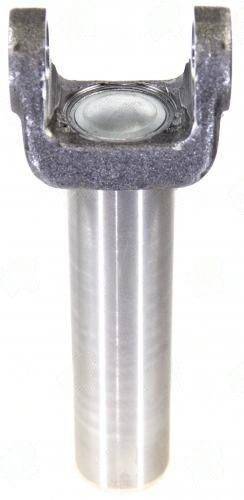

2603-30 – Transmission Yokes – 7260 Series – 29/30 X 1.312 Splines – 1.681″ Hub Dia
$70.89
Description
The 2603-30 Transmission Yoke is engineered for compatibility with a variety of Chrysler transmissions, including the 727, A518, 46RH, 46RE, and 47RE. With a spline count of 29/30 and a diameter of 1.312 inches, this yoke ensures a precise fit that is crucial for maintaining proper torque transfer and alignment in your driveline. The 7260 Series designation indicates that it is designed to work with U-joints that have a cap diameter of 1.078 inches, making it a reliable choice for performance and durability.
The hub diameter of 1.681 inches provides a robust connection point, while the counter bore diameter of 1.507 inches allows for a snug fit against the transmission output. The slip yoke length measures 8.031 inches from the centerline to the end of the spline, which is essential for accommodating suspension travel without binding. This axial movement is critical for maintaining driveline integrity during operation.
- Check spline engagement depth before installation.
- Ensure proper phasing with the opposite yoke to avoid vibrations.
- Never force spline entry; align carefully to prevent damage.
- Compatible with DET#2883575 Chrysler 727/A518/46RH/46RE/47RE trans.
- Verify U-joint series compatibility for optimal performance.
In summary, the 2603-30 yoke is a vital component for those working on Chrysler driveline systems, ensuring reliability and performance in demanding applications.
| Center u joint to end | 8.031 |
|---|---|
| Counter bore dia | 1.507 |
| Hub dia | 1.681 |
| Notes | DET#2883575 Chrysler 727/A518/46RH/46RE/47RE trans |
| Partn number | 2603-30 |
| Remaining stock | >10 |
| Series | 7260 |
| Splines count dia | 29/30 X 1.312 |
