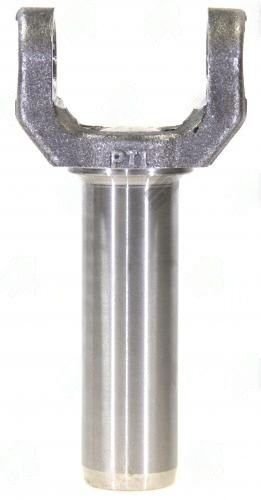

2603-22 – Transmission Yokes – 7260 Series – 20/22 X 0.959 Splines – 1.375″ Hub Dia

When you’re working on a Mazda driveline, the 2603-22 Transmission Yoke is a crucial component to consider. This yoke features a 7260 Series design, which is specifically tailored for heavy-duty applications. Before you install, make sure to check the spline count of 20/22 X 0.959 against your output shaft. It’s easy to mix up spline counts, and a mismatch can lead to installation headaches.

The hub diameter measures 1.375 inches, and the counter bore diameter is 1.050 inches, so ensure these dimensions align with your setup. The length from the center of the universal joint to the end is 6.000 inches, which is standard for many Mazda applications. This yoke allows for proper engagement and axial movement, which is essential during suspension travel.

• Verify spline engagement depth before installation.
• Check for proper phasing with the opposite yoke.
• Never force the spline entry; it should slide in smoothly.

In summary, the 2603-22 is designed to fit Mazda vehicles perfectly, making it an excellent choice for your next driveline project. Remember to double-check all measurements and compatibility to ensure a successful installation.
