2602-34 – Flange Yokes – 7260 Series – Bolt Circle Dia 3.400″ – Pilot Dia 1.772, M

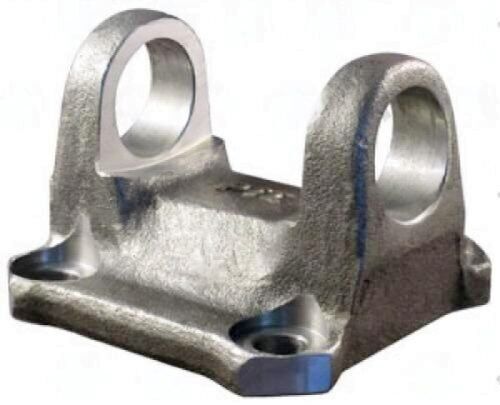

When diagnosing driveline issues, the 2602-34 Flange Yoke is a critical component that connects the driveshaft to your vehicle’s powertrain or axle assembly. This yoke is designed for 7260 Series applications, ensuring compatibility with the specific U-joint cap diameter and cross width required for optimal performance. Key specifications include a bolt circle diameter of 3.400 inches, a pilot diameter of 1.772 inches, and a bolt hole diameter of 0.410 inches.

Worn or damaged flange yokes can lead to excessive vibrations, misalignment, and even catastrophic failure of the driveline. If you notice a clunking noise or a vibration that intensifies under load, it’s time to inspect the yoke. Look for signs of wear on the splines and ensure proper spline engagement depth. If the yoke is not properly phased with the opposite yoke, you may experience driveline vibrations that can be mistaken for other issues.

To ensure a successful installation of the 2602-34, follow these guidelines:

• Verify the spline count and ensure proper engagement depth.
• Check phasing with the opposite yoke to prevent vibrations.
• Torque the fasteners to the manufacturer’s specifications.
• Inspect the mating components as a system for any signs of wear.

Replacing a worn flange yoke with the 2602-34 restores proper function and reliability to your driveline, ensuring smooth operation and longevity.
