2553-252 – Stub & Midship Shaft – 25 X 1.058 Splines – Butt Dia 2.344″ – Tube Dia Wall 2.500X0.083
$103.25
Description

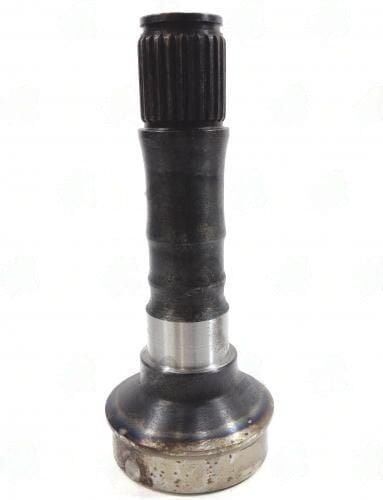

The 2553-252 Stub & Midship Shaft is engineered for precise torque transmission in plunge CVJ setups, specifically designed to work with the 2526-253 or 2526-251 CVJ weld yokes. With a spline count of 25 and a diameter of 1.058 inches, this shaft ensures a secure fit and reliable performance in demanding applications.
The butt diameter of 2.344 inches is crucial as it determines the compatibility with the mating components in your driveline system. This dimension ensures that the shaft seats properly into the yoke, maintaining the integrity of the torque transfer from the transmission to the differential. Additionally, the tube diameter wall of 2.500 inches with a thickness of 0.083 inches provides the necessary strength while keeping weight in check, allowing for efficient operation at higher speeds.
- Verify the end-to-weld measurement of 5.375 inches for proper fitment.
- Check the spline length of 1.125 inches to ensure compatibility with your setup.
- Ensure the shaft is balanced during installation to prevent vibrations.
- Always torque bolts to the manufacturer’s specifications to maintain driveline integrity.
In summary, the 2553-252 Stub & Midship Shaft is a critical component for achieving optimal performance in your driveline system. Its specific dimensions and compatibility make it an essential choice for those working with plunge CVJ setups.
| Butt dia | 2.344 |
|---|---|
| End to weld | 5.375 |
| Notes | plunge cvj set up with 2526-253 or 2526-251 cvj weld yoke ,Used with: 2552-1001 / 2552-1002 |
| Partn number | 2553-252 |
| Remaining stock | >10 |
| Splines count dia | 25 X 1.058 |
| Splines length | 1.125 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | CVJ |
