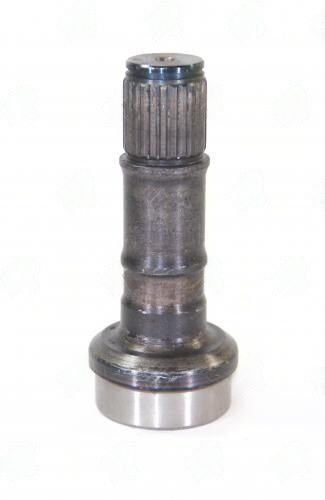

2542-201 – Stub & Midship Shaft – 25 X 1.058 Splines – Butt Dia 1.844″ – Tube Dia Wall 2.000X0.083
$92.89
Description
The 2542-201 Stub & Midship Shaft is a critical component in the driveline, designed to effectively transmit torque from the transmission to the differential. With 25 X 1.058 splines, this shaft ensures a robust connection that can handle significant torque loads. The 1.844″ butt diameter and the tube diameter wall of 2.000X0.083 provide the necessary strength and rigidity to maintain performance under various load conditions.
This shaft is specifically used with the 2552-1002 CVJ kit, making it a vital part of the assembly. The splines length of 937″ and an end-to-weld measurement of 4.149″ are engineered to fit precisely within the system, ensuring that the critical speed limits are respected to prevent vibrations and potential failure. Proper installation is essential; verify phasing marks and check for runout to ensure optimal performance.
- Ensure the spline count and diameter match the transmission output.
- Check the tube diameter and wall thickness for compatibility.
- Torque all fasteners to the specified application requirements.
- Balance the assembly if any vibrations are detected.
In summary, the 2542-201 Stub & Midship Shaft is designed to meet the demands of high-performance applications while maintaining reliability and strength.
| Butt dia | 1.844 |
|---|---|
| End to weld | 4.149 |
| Notes | Used with 2552-1002 CVJ kit |
| Partn number | 2542-201 |
| Remaining stock | >10 |
| Splines count dia | 25 X 1.058 |
| Splines length | 937 |
| Tube dia | 2.000 |
| Tube wall | 0.083" |
| Style | CVJ |
