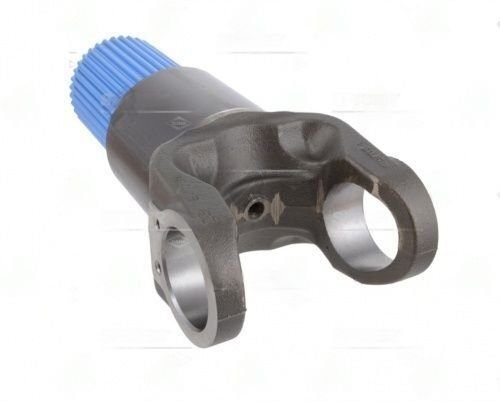

The 250-82-21X Yoke Shaft is engineered for SPL250 applications, featuring a critical spline diameter of 3.858 inches. This measurement is essential as it determines the compatibility with the mating components in your driveline system. The 38 splines ensure a secure fit, allowing for efficient torque transfer and minimizing the risk of slippage during operation.
With a spline length of 8.555 inches, this yoke shaft accommodates the necessary axial movement during suspension travel, which is crucial for maintaining driveline integrity under dynamic conditions. The centerline to end measurement of 11.811 inches provides the correct alignment for installation, ensuring that the yoke connects seamlessly to the transmission or differential.
Installation tips for the 250-82-21X Yoke Shaft include:
- Check spline engagement depth before installation.
- Ensure proper phasing with the opposite yoke to prevent vibrations.
- Never force spline entry; align carefully to avoid damage.
Additionally, the boot cap part number 109-30-2-94M is compatible with this yoke shaft, providing protection against contaminants. The SPL250 series designation indicates this part’s specific fitment and performance characteristics, making it a reliable choice for your driveline needs. Trust the 250-82-21X to deliver the performance and durability required in demanding applications.
